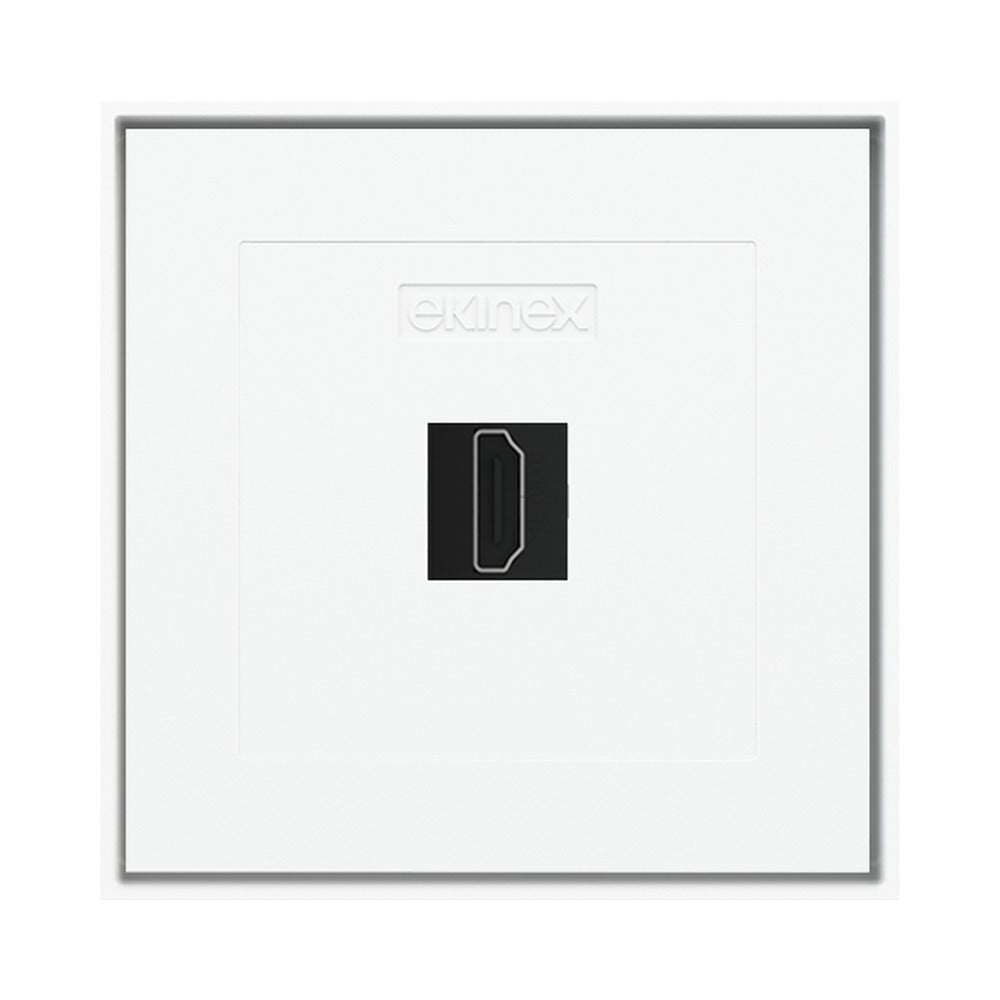

Ekinex keystone HDMI female/female connector
Ekinex keystone HDMI female/female connector
Ekinex keystone HDMI female/female feed-through connector. Keystone modules snap into Ekinex keystone covers (FF, 71, 20venti, Signum) or into the Proxima/ERA keystone holder, so data, AV and antenna outlets match the other wall devices.
- Colours: white (EK-KSM-HDMI-WH), black (EK-KSM-HDMI-BL)
- Dimensions (W × D × H): approx. 29.7 × 21.9 × 17.4 mm
- Protection: IP20, indoor use
- Operating temperature: -10 to +60 °C
- Humidity: 10–90 %
- Certificates: CE, RoHS
- Manufacturer reference: EK-KSM-HDMI-WH / -BL
Sold separately, required for installation: FF / 71 / 20venti / Signum series: a keystone front cover EK-KSC-1K (1 connector) or EK-KSC-2K (2 connectors), a plate with 55 × 55 mm window ('NF/Form EK-PQG, Deep EK-DQG or Surface EK-SQG; 2-fold EK-P2G/EK-P2P, EK-D2G/EK-D2P, EK-S2G/EK-S2P; 3-fold EK-D3G/EK-D3P) and the matching plastic adapter (EK-TAQE-1 / EK-TAQE-1-NF for square plates, EK-TAS-Q for Surface plates; 2-fold EK-A71E / EK-TAS-D; 3-fold EK-B71-1-NF). Proxima / ERA series: the keystone holder EK-KST-1K, a magnetic plate Proxima EK-PQA-K or ERA EK-DEA-K (2 modules: EK-PQA-P / EK-DEA-P) and the bracket EK-SMP-71-1.
