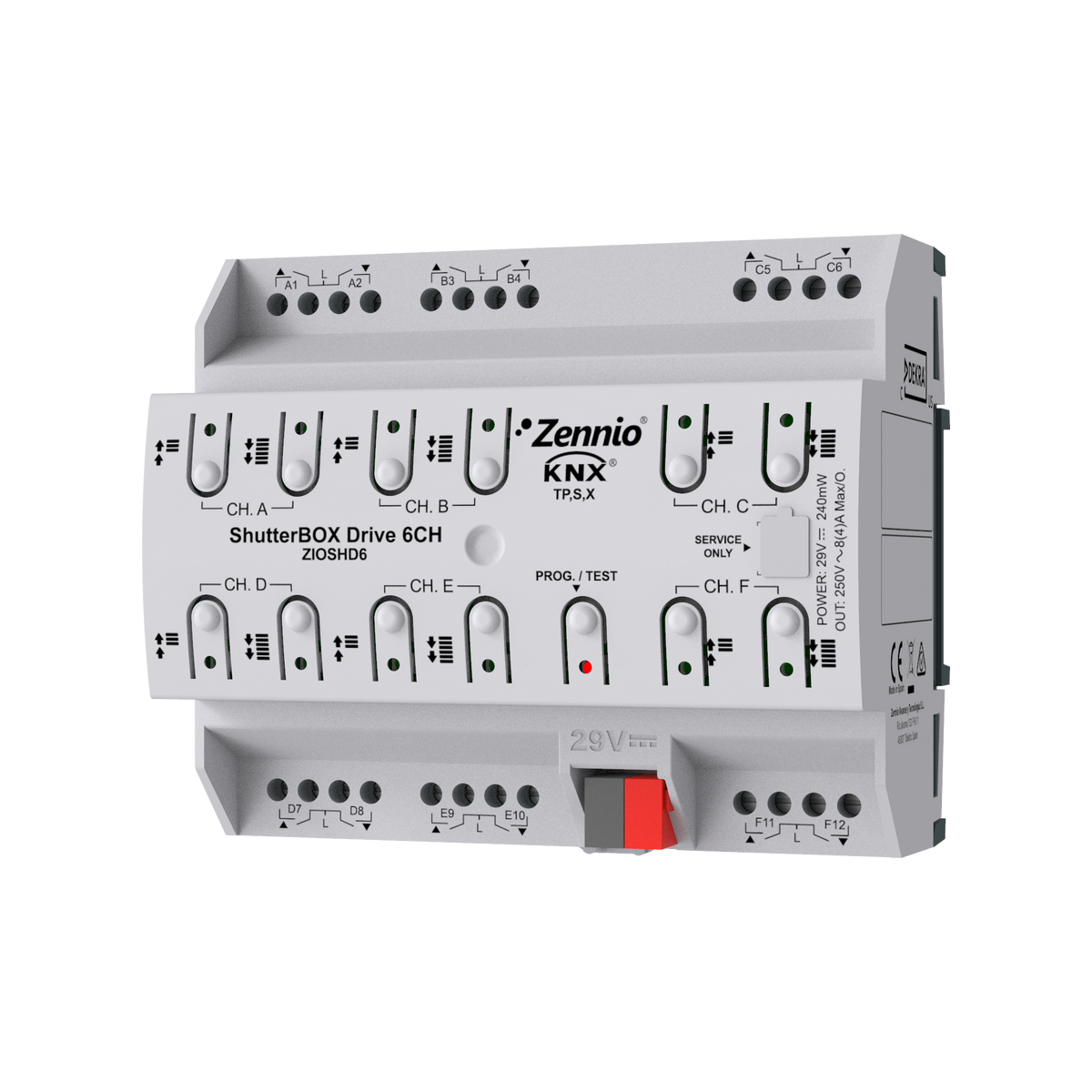

ShutterBOX Drive 6CH. 6-channel shutter actuator with automatic travel time detection and KNX Secure by Zennio

Zennio ShutterBOX Drive 6CH KNX Secure Shutter Actuator

€348,00€421,08
excl. VATincl. VAT
Skip to product information
ShutterBOX Drive 6CH. 6-channel shutter actuator with automatic travel time detection and KNX Secure by Zennio

Zennio ShutterBOX Drive 6CH KNX Secure Shutter Actuator

€348,00€421,08
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

Zennio ShutterBOX Drive 6CH KNX Secure shutter actuator for up to 6 blinds or shutters, for DIN-rail mounting. It measures shutter travel times automatically through current detection (AC-powered motors).

  • Channels: 6 shutter channels
  • Output rating: AC 8(4) A @ 250 VAC (2000 VA) per output, 2000 W resistive
  • Shutters: control with 2 or 3 dry contacts
  • Travel time: automatic measurement by current detection (AC shutters only)
  • Functions: 20 logic functions, 2 Master Light controls, output timing
  • Manual control: push buttons with LED status indicators
  • Mounting: DIN rail (IEC 60715 TH35), 6 DIN units
  • Dimensions: 67 × 90 × 105 mm
  • Security: KNX Data Secure
  • Manufacturer reference: ZIOSHD6
