Elsner KNX S4-B12 DES

Elsner KNX S4-B12 DES – KNX Blinds & Shutters Actuator

€490,76€593,82
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

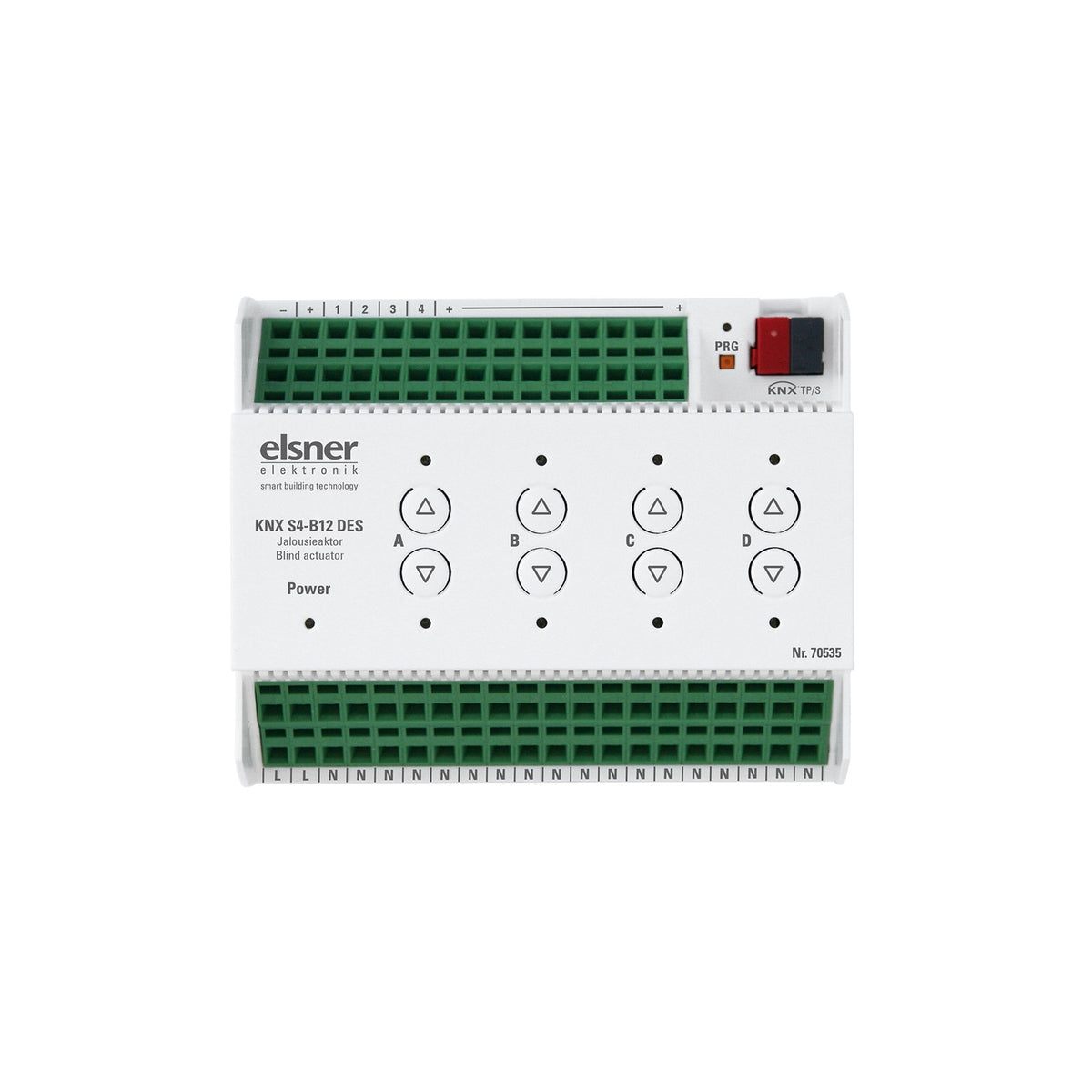

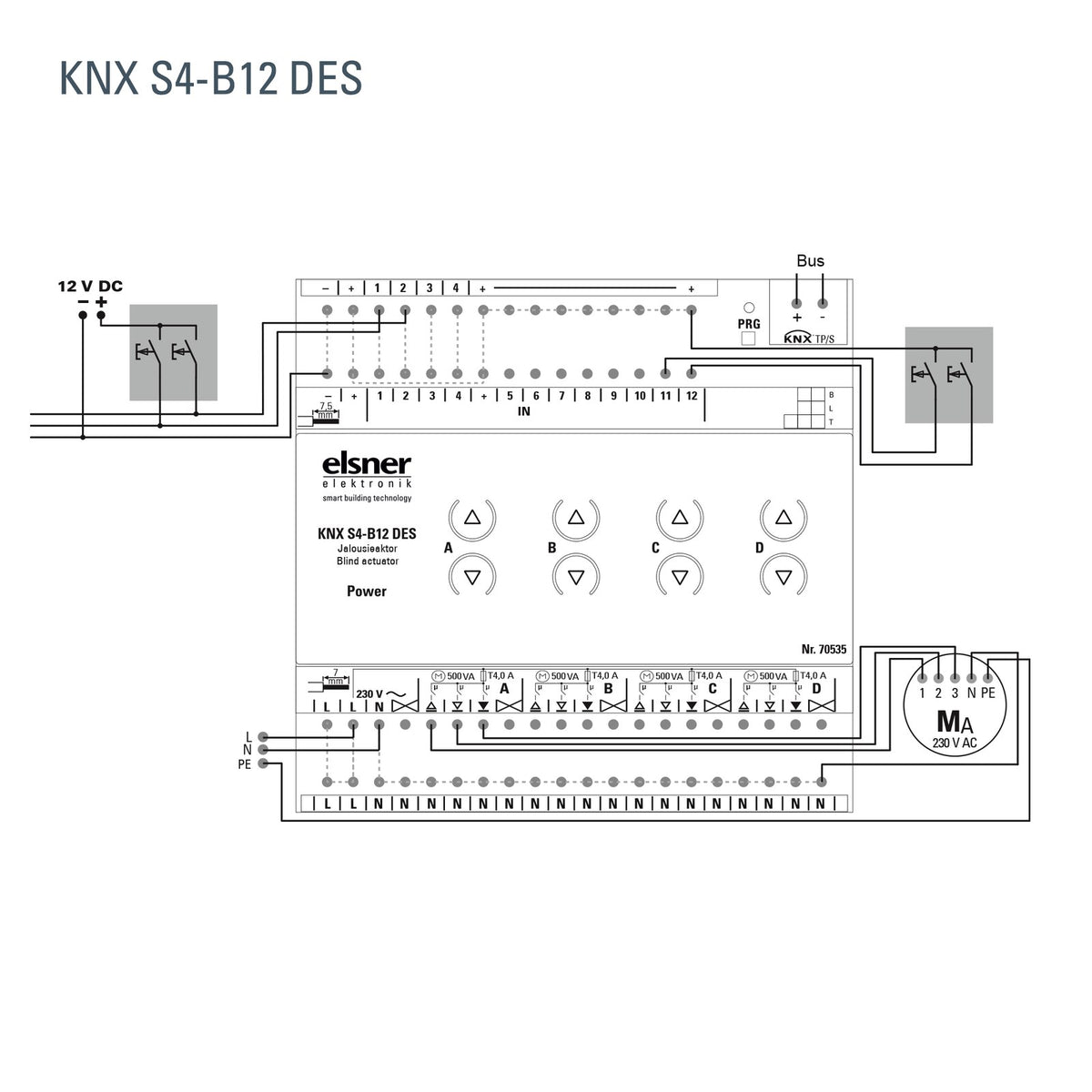

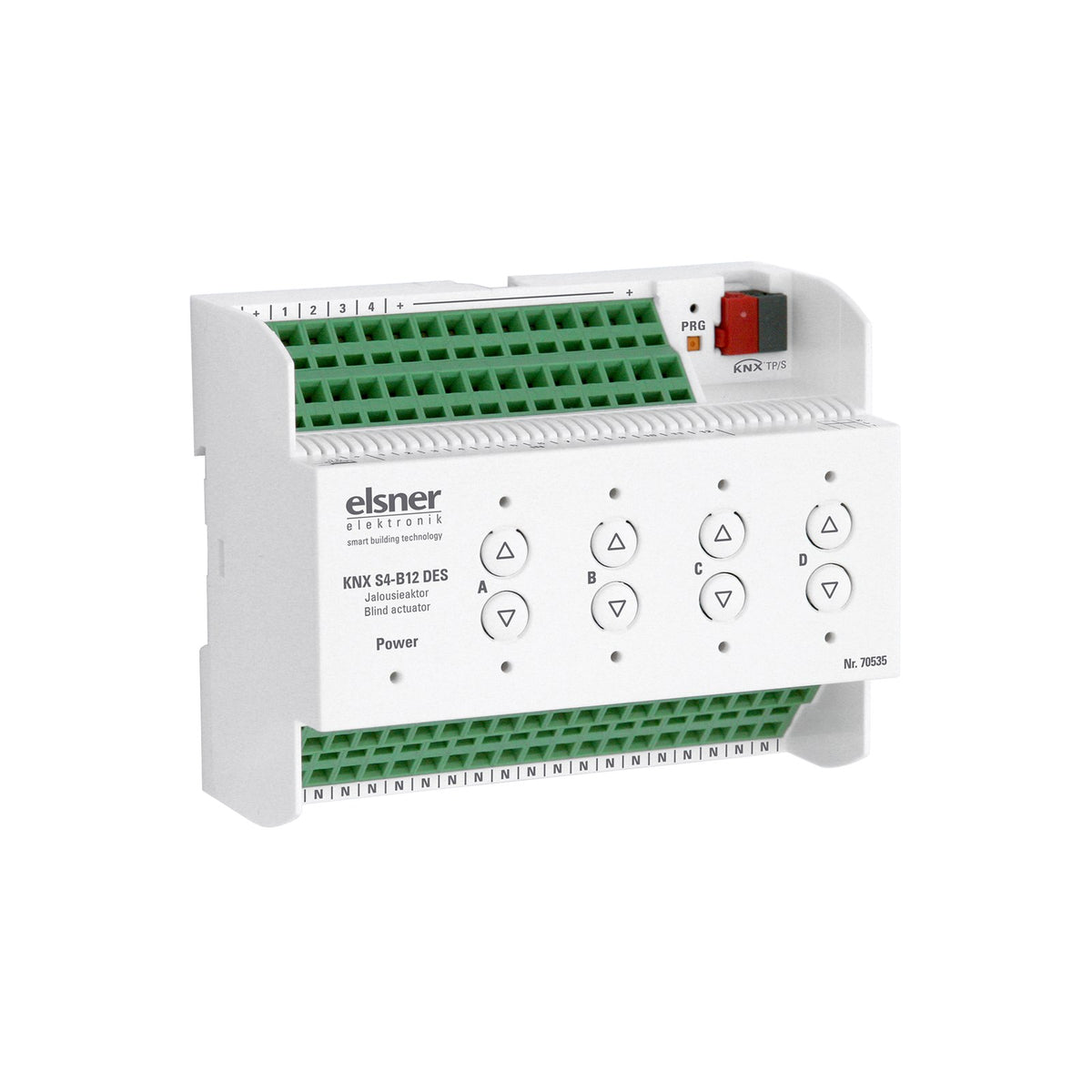

KNX S4-B12 DES is a DIN-rail KNX actuator for up to four 230 V drives with three limit switches, e.g. shutters with a working position. It adds 12 binary inputs, a switch panel for direct operation and integrated shading control per motor output.

  • Outputs: 4 motor outputs for drives with 3 limit switches (UP/DOWN1/DOWN2), max. 500 VA per output
  • Inputs: 12 binary inputs, 8…32 V DC, for manual or bus push buttons
  • Operation: Switch panel with 4 button pairs and status LEDs
  • Automation: Integrated shading control per output, position feedback and storage, 16 scenes per motor, priorities (e.g. wind block)
  • Supply: 230 V AC / 50 Hz, typ. 2.5 W, max. 3.5 W; KNX bus 10 mA
  • Mounting: 35 mm DIN rail, 6 division units
  • Dimensions: 107 × 88 × 60 mm (W × H × D), IP20
  • Colour: White
  • Manufacturer reference: 70535
