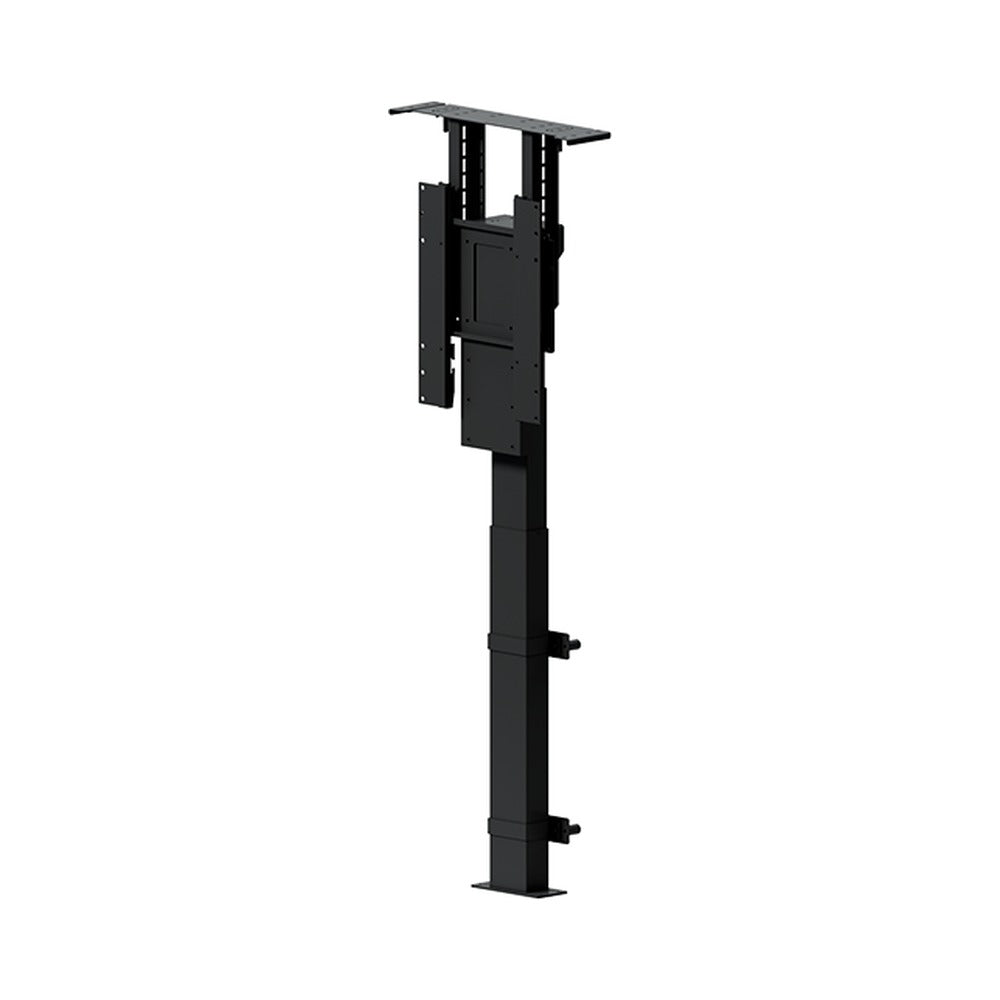

Ekinex Revélo Up & Down motorised TV lift

Revélo Up & Down is a motorised lift that hides the TV inside a cabinet and raises it into viewing position with a wired control. The electric motor is integrated in the lifting column; the two models differ in column length and TV size.

• Models: EK-LTV-BL: TV 32″ up to 43″, height at rest 598.5 / 790 mm; EK-LTV-XL-BL: TV up to 65″, height at rest 753.5 / 939 mm
• Max. TV weight: 25 kg
• Stroke: 655 mm (standard) / 999 mm (XL); max. speed 38 mm/s, cycle time 18–25 s
• Max. thrust: 700 N (standard) / 600 N (XL)
• Dimensions at rest (W × H × D, without TV): 471 × 598.5 / 790 × 174.7 mm (standard); 471 × 753.5 / 939 × 171.5 mm (XL)
• Max. dimensions (without TV): 471 × 1445 × 174.7 mm (standard); 471 × 1945 × 171.5 mm (XL)
• Weight (without TV): 15 kg (standard) / 16 kg (XL)
• Power supply: 100–240 V AC ±10 %, 50–60 Hz; 300 W total, 0.1 W standby
• Duty cycle: 10 % (standard) / 5 % (XL): max. 2 min continuous at full load, then 18 min pause
• Features: silent movement, PIEZO anti-collision sensor, invisible slide rails, PVC-free, compatible with Sky Glass, EN 60335-1
• Colour: black RAL 9005
• Manufacturer reference: EK-LTV-BL / EK-LTV-XL-BL
