Ekinex 'NF/Form rectangular plate 121x80, 68x45 window EK-PRG
Ekinex 'NF/Form rectangular plate 121x80, 68x45 window EK-PRG

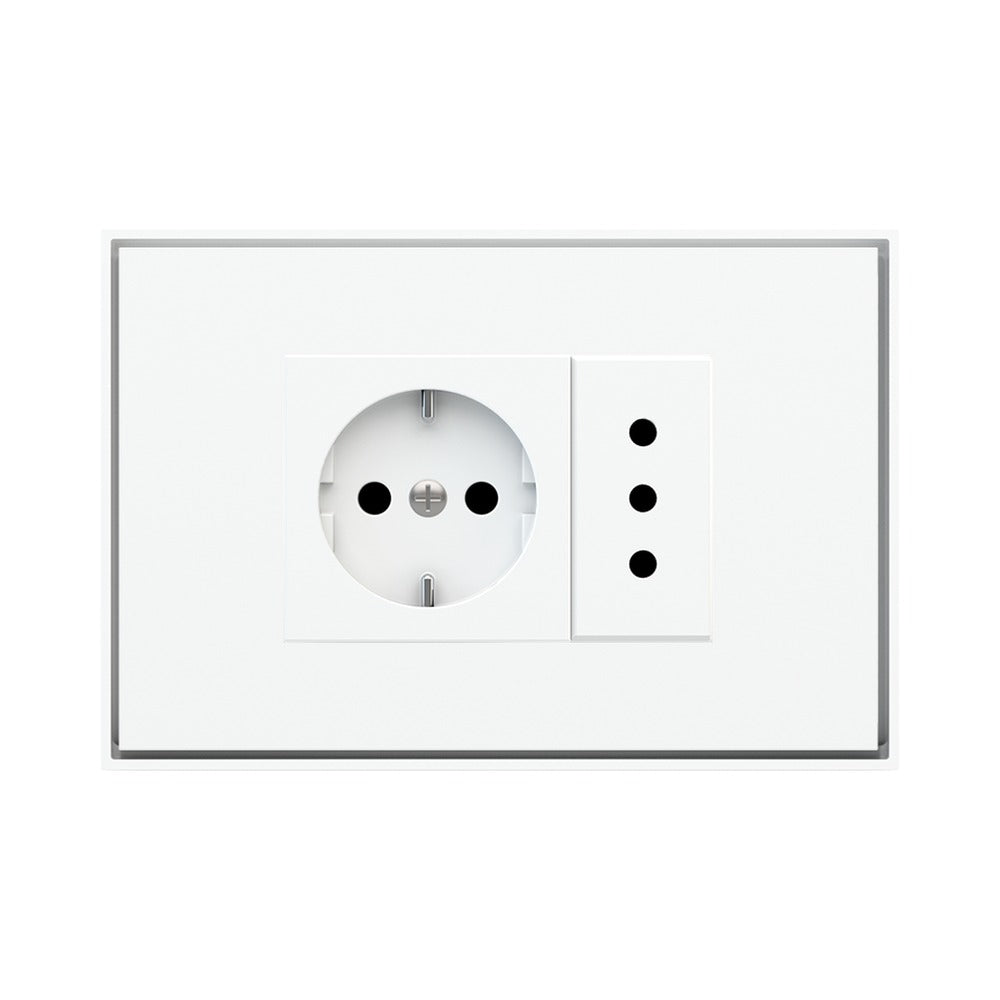

Ekinex 'NF / Form rectangular plate with one window of 68 × 45 mm, for completing wall points that combine Ekinex KNX devices, Ekinex sockets and standard wiring-device inserts. A flat 3 mm plate for the frameless 'NF look, or combined with a Form frame for the Form look. Available in 17 finishes.
- Series: 'NF / Form (FF, 71 series)
- Dimensions: 121 × 80 × 3 mm
- Windows: 1 window 68 × 45 mm
- Mounting: snap-on onto a plastic adapter, ordered separately
- Finishes: Technopolymer – Warm White (GAA), Intense Black RAL 9005 (GAE), Silver (GAG), Pure White RAL 9016 (GAR); Metal – Brass 26 (GBC), Aluminium (GBQ), Nickel (GBR), Titanium (GBS); Fenix NTM – Beige Luxor (FBL), White Malè (FBM), Cocoa Orinoco (FCC), Beaver Ottawa (FCO), Grey Bromine (FGB), Grey Ephesus (FGE), Grey London (FGL), Black Ingo (FNI), Green Commodore (FVC)
- Manufacturer reference: EK-PRG-___ (finish code suffix)
Sold separately, required for installation: a plastic adapter – rectangular adapter EK-TAR-1 (-NF / -NFW for the 'NF look, EK-TAR-1 with a rectangular Form frame EK-FOR for the Form look).
Compatible with: standard 3-module 68 × 45 mm inserts (recommended: BTicino Axolute, Vimar Arké, Eikon and Eikon Evo; also compatible: BTicino Living International, Living Light, Vimar Plana, Idea, Gewiss).
