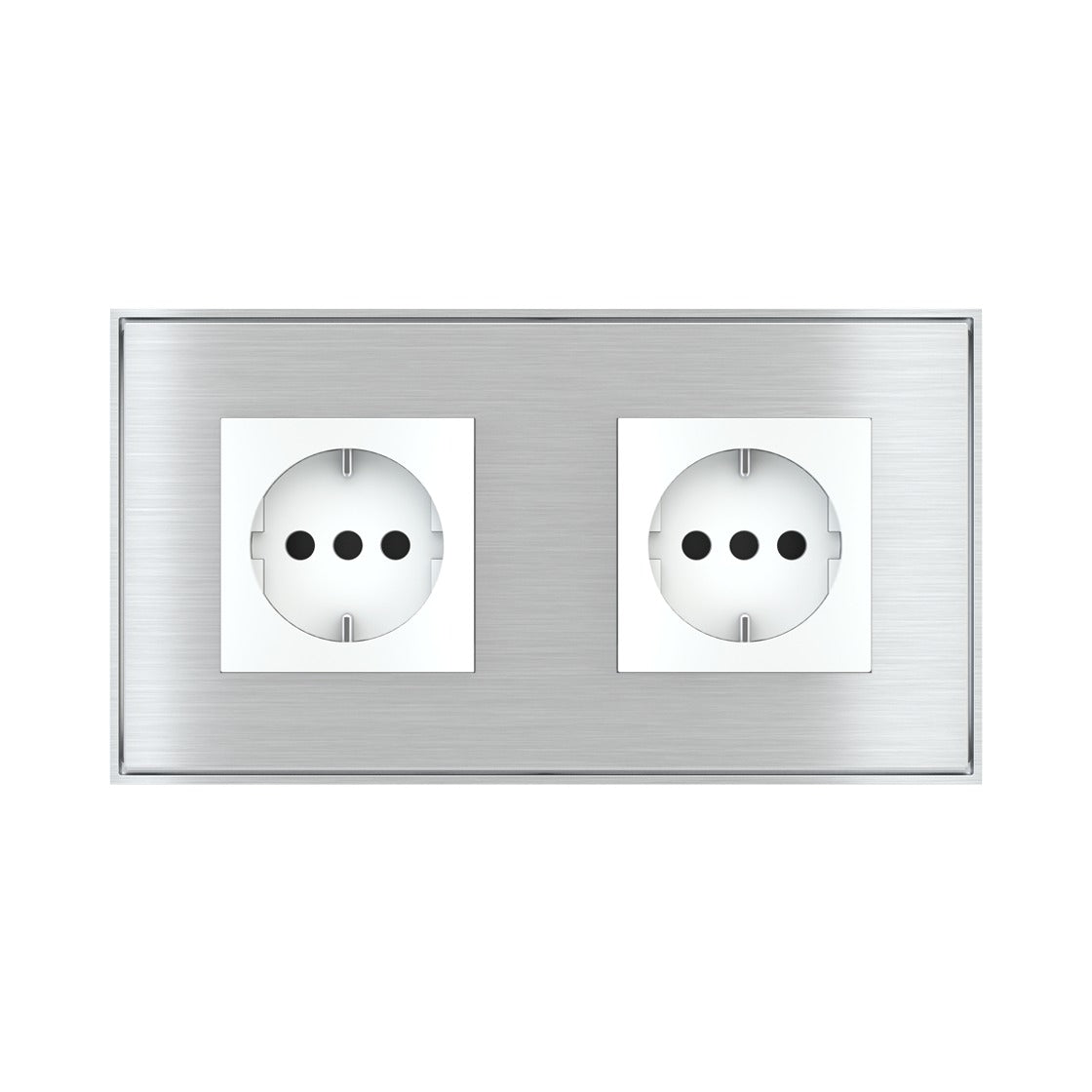

Ekinex 'NF/Form 2-fold plate 151x80, 45x45 + 45x45 EK-P2E

Ekinex 'NF / Form 2-fold plate with two windows 45 × 45 + 45 × 45 mm, for completing wall points that combine Ekinex KNX devices, Ekinex sockets and standard wiring-device inserts. A flat 3 mm plate for the frameless 'NF look, or combined with a Form frame for the Form look. Available in 14 finishes.

• Series: 'NF / Form (FF, 71 series)
• Dimensions: 151 × 80 × 3 mm
• Windows: 2 windows 45 × 45 + 45 × 45 mm
• Centre distance: 71 mm (boxes with fixing holes 71 mm apart)
• Mounting: snap-on onto a plastic adapter, ordered separately
• Finishes: Metal – Brass 26 (GBC), Aluminium (GBQ), Nickel (GBR), Titanium (GBS), Carbon (GBU); Fenix NTM – Beige Luxor (FBL), White Malè (FBM), Cocoa Orinoco (FCC), Beaver Ottawa (FCO), Grey Bromine (FGB), Grey Ephesus (FGE), Grey London (FGL), Black Ingo (FNI), Green Commodore (FVC)
• Manufacturer reference: EK-P2E-___ (finish code suffix)

Sold separately, required for installation: a plastic adapter – 2-fold adapter EK-A71E / EK-A71 (EK-A71E-1-NF / -NFW for the 'NF look, EK-A71E with a 2-fold Form frame EK-FO2 for the Form look; EK-A71 / EK-A71-1-NF if one insert is third-party).

Compatible with: standard 45 × 45 mm inserts.
