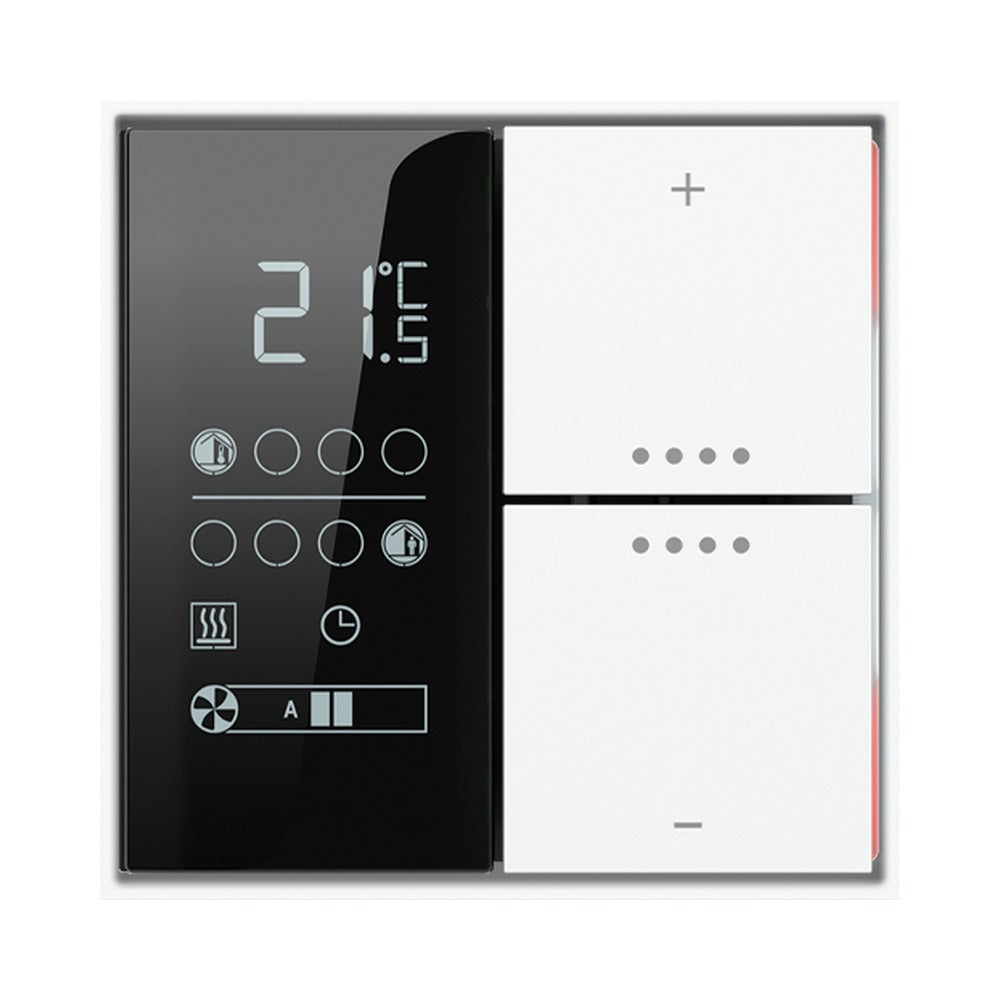

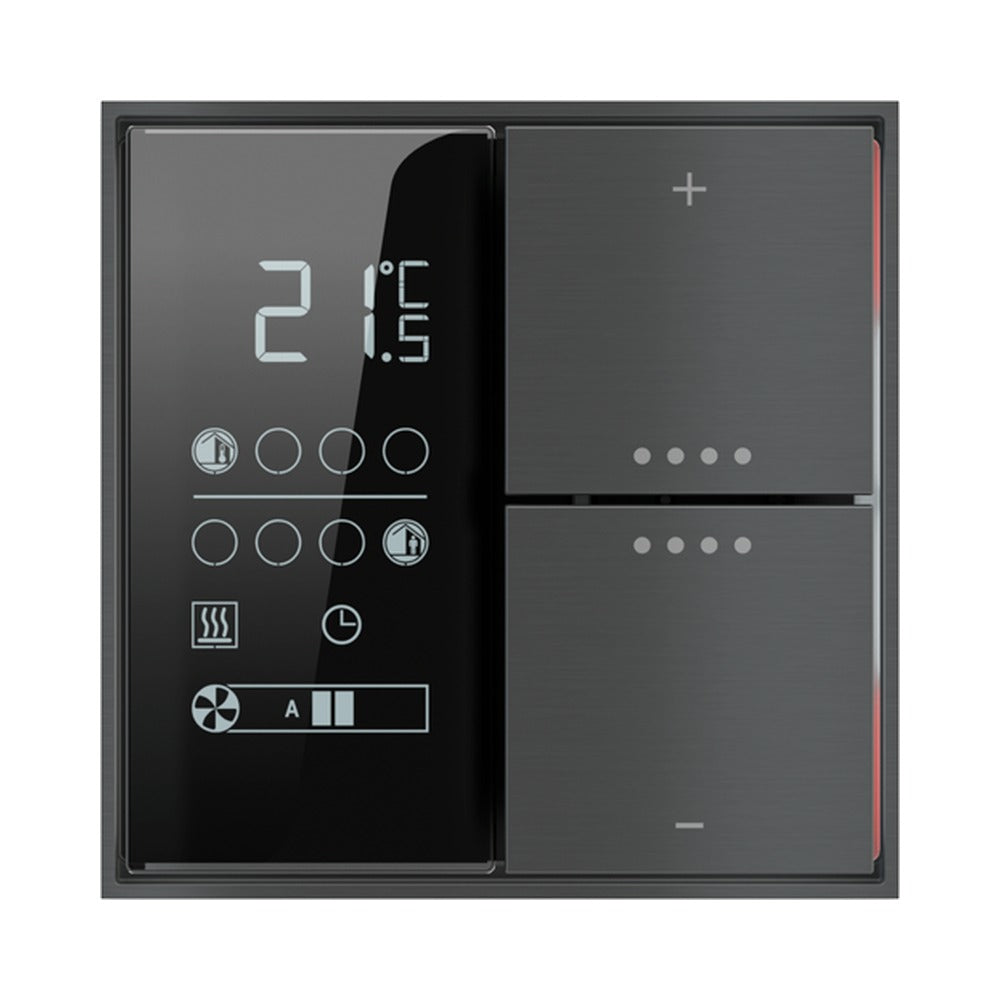

Ekinex FF KNX room thermostat with humidity sensor EK-EQ2-TP

KNX room temperature controller of the Ekinex FF series with integrated relative humidity sensor: controls heating and cooling of a room or zone together with KNX actuators. LCD display, temperature, humidity and brightness sensors, two inputs. Bus-powered.

• Display: LCD with adjustable backlight, 2 keys for thermostat functions
• LEDs: 4 freely programmable LEDs per button, blue/green or red/white
• Sensors: temperature, relative humidity and brightness sensors
• Inputs: 2 freely programmable inputs
• Versions: Form (for square frame EK-FOQ, black side profile), 'NF frameless with black side profile or 'NFW frameless with white side profile
• Power supply: KNX bus 30 V DC, no auxiliary supply, < 13 mA
• Mounting: round or square wall box (fixing holes 60 mm apart); metal support, KNX terminal and screws included
• Dimensions: 82 × 75 × 35 mm (W × H × D)
• Protection / weight: IP20 (installed), 85 g with support
• Configuration: ETS5 or later
• Manufacturer reference: EK-EQ2-TP (-RW, -BG-NF, -RW-NF, -BG-NFW, -RW-NFW)

Sold separately, required for installation: the thermostat rocker set EK-TQQ-…-EP2 (2 rockers with symbols); Form version: square Form frame EK-FOQ.
