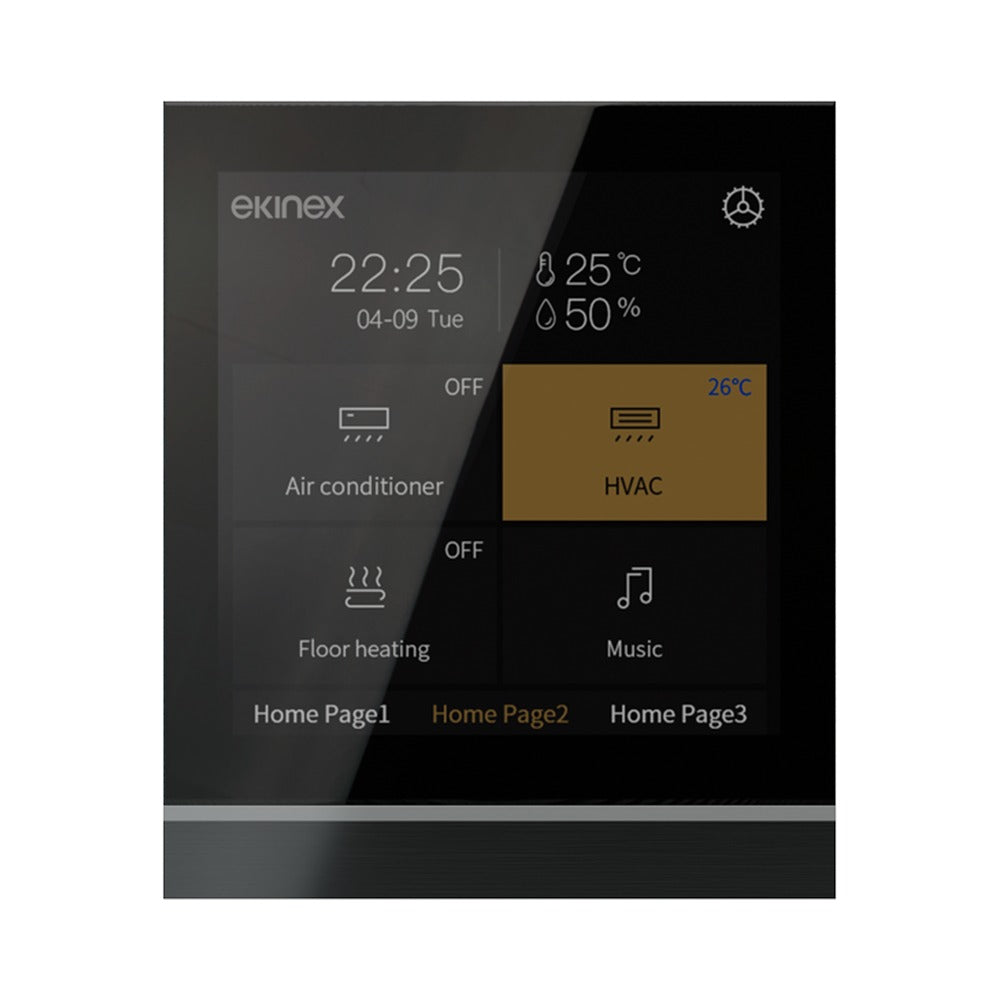

Ekinex Touch&Control 4" KNX room controller EK-EI2-TP-4

Ekinex Touch&Control 4" KNX room controller with capacitive colour touch screen: widgets for lights, dimmers, RGB/RGBW, blinds, audio, air conditioning, air quality and 4 temperature control zones. Proximity sensor wakes the screen; LED strip for night orientation and alarms.

• Display: 4" IPS capacitive colour touch screen, 480 × 480 px, haptic feedback
• Functions: lighting and dimming, shutters, 4-zone room thermostat, HVAC, audio, RGB/RGBW/RGBCW, air quality and energy display, 8 timers, 8 scenes, 8 logic functions, weekly timer, alarm, password lock
• Sensors: temperature sensor, proximity sensor (approx. 30 cm)
• Power supply: KNX bus 21–30 V DC (4 mA) plus SELV auxiliary supply 12–30 V DC (< 71 mA)
• Colours: black (EK-EI2-TP-4) or white (EK-EI2-TP-4-W)
• Dimensions / weight: 86 × 102 × 10.5 mm (34 mm total depth), 200 g
• In the box: mounting support, bus and auxiliary supply terminals
• Manufacturer reference: EK-EI2-TP-4 / EK-EI2-TP-4-W

Sold separately, required for installation: a 12–30 V DC auxiliary power supply (EK-PSUD24).

Official Ekinex product page
