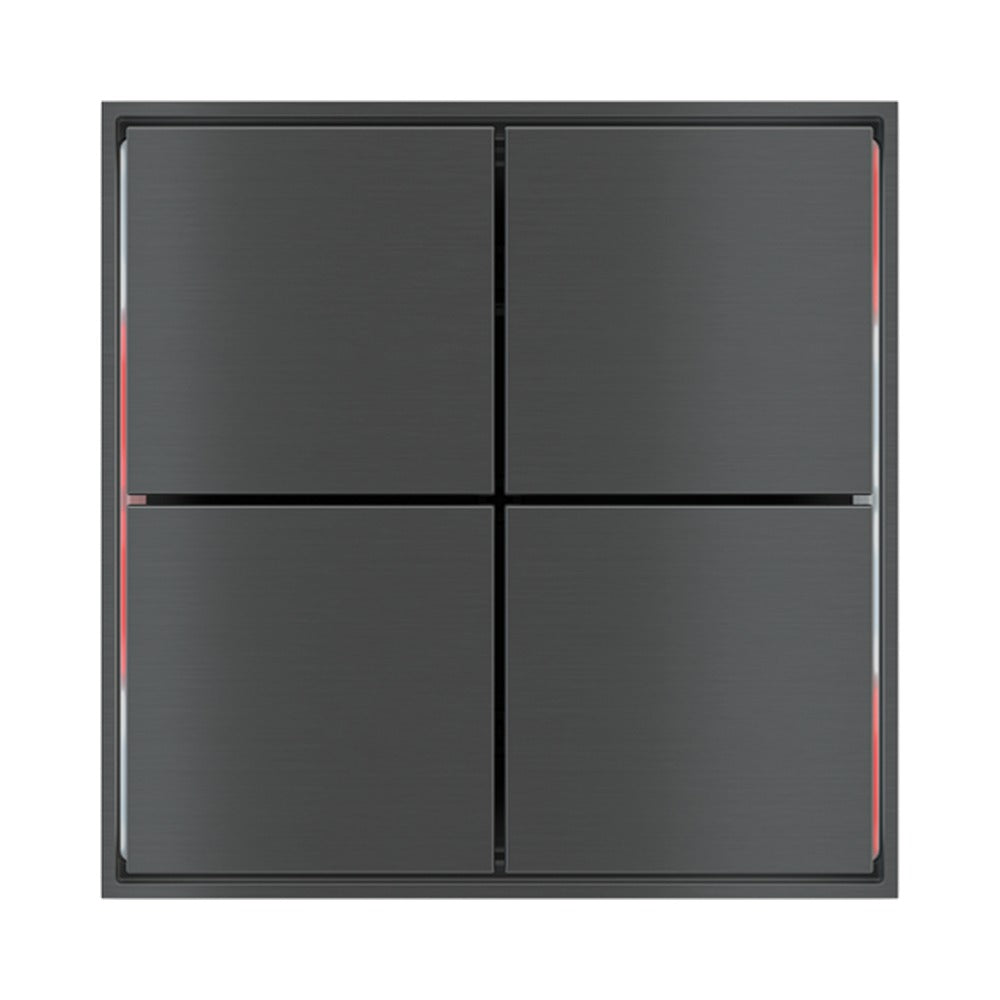

Ekinex FF KNX 4-channel pushbutton with thermostat EK-ED2-TP

KNX 4-fold pushbutton of the Ekinex FF series with integrated temperature sensor: it switches and dims lights, drives shutters or runs any other programmable KNX function and can work as a room or zone thermostat. Bus-powered, for a flush-mounted wall box.

• Channels: 4 rockers, up to 8 independent functions
• LEDs: 4 freely programmable LEDs per channel, blue/green or red/white
• Sensors: integrated temperature sensor, room thermostat function
• Versions: Form (for square frame EK-FOQ, black side profile), 'NF frameless with black side profile or 'NFW frameless with white side profile
• Power supply: KNX bus 30 V DC, no auxiliary supply, < 15 mA
• Mounting: round or square wall box (fixing holes 60 mm apart); metal support, KNX terminal and screws included
• Dimensions: 82 × 79 × 19 mm (W × H × D)
• Protection / weight: IP20 (installed), 80 g with support
• Configuration: ETS5 or later
• Manufacturer reference: EK-ED2-TP (-RW, -BG-NF, -RW-NF, -BG-NFW, -RW-NFW)

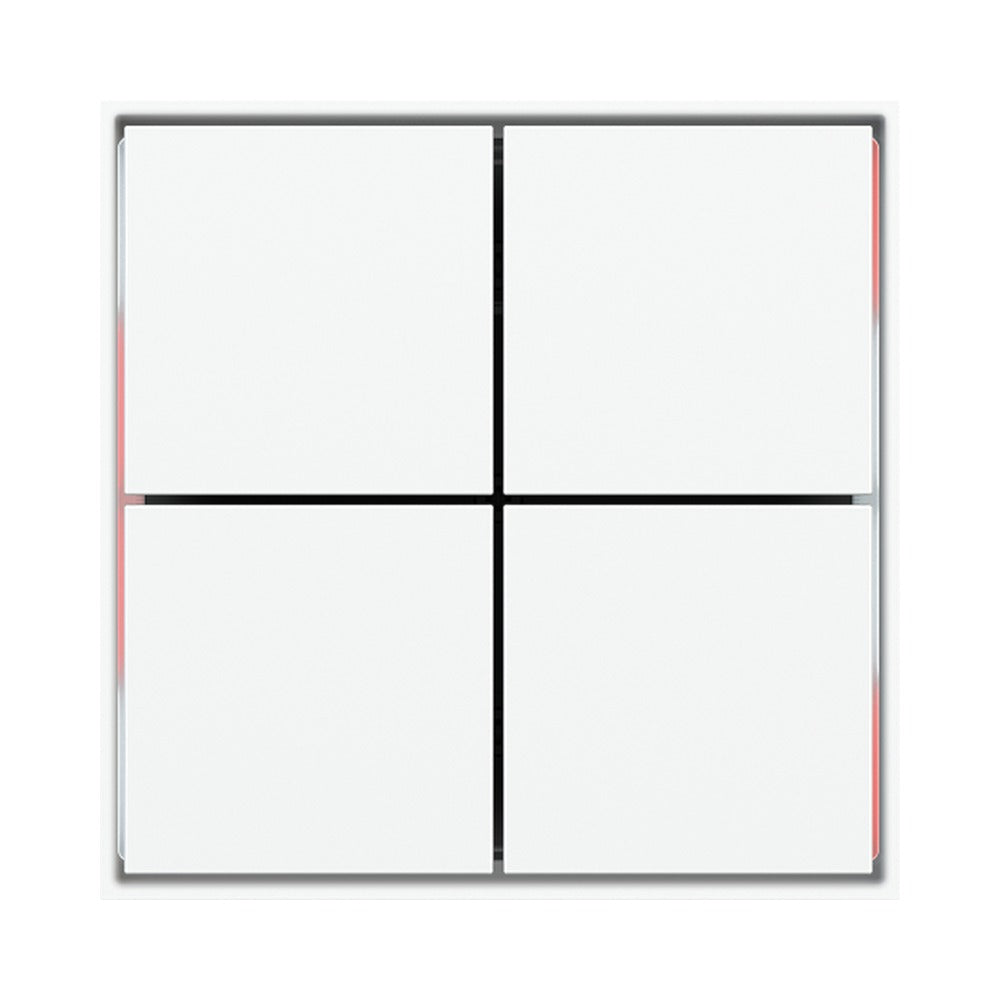

Sold separately, required for installation: a rocker set – square rockers EK-TQQ (pack of 4), vertical rockers EK-TRV (pack of 2) or horizontal rockers EK-TRO (pack of 4); for the Form version (codes without -NF/-NFW) a square Form frame EK-FOQ.
