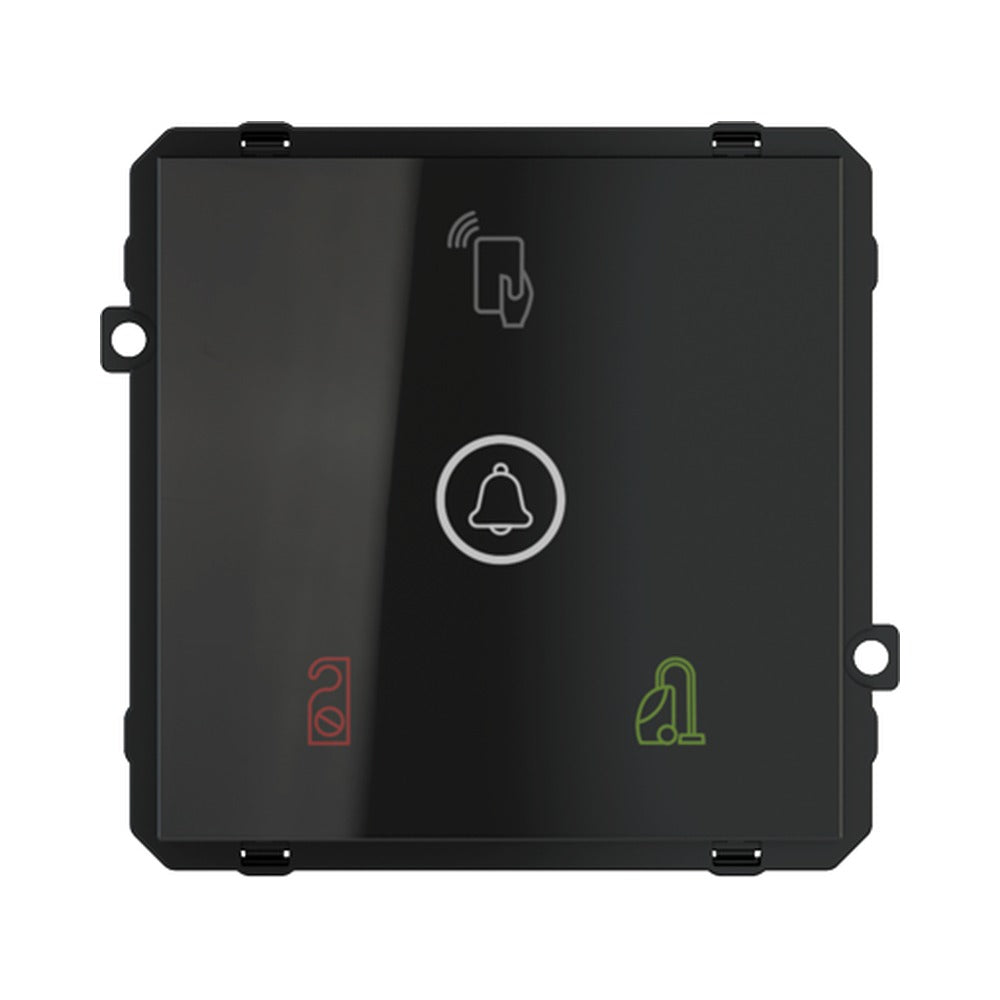

Ekinex KNX Secure RFID card reader EK-TO2-TP
Ekinex KNX Secure RFID card reader EK-TO2-TP
KNX Secure RFID card reader for hotel rooms and access-controlled spaces: the card is read simply by bringing it close to the device (up to 20 mm), and access is granted according to the configured authorisations. It has a backlit display, an integrated KNX bus module and fits the Ekinex FF, 71, 20venti and Signum plate systems with a 60 × 60 mm window.
- Technology: MIFARE RFID reader, 13.56 MHz, reading distance up to 20 mm
- Signalling: backlit DND (Do Not Disturb, red LED) and MUR (Make Up Room, green LED) symbols, RFID symbol (not backlit), RGB LED for general functions, bell button with white LED
- Inputs: 2 digital inputs for a conventional pushbutton (switching, dimming, shutter/blind) or a signal contact (e.g. window contact)
- Output: programmable output driven by card validation or by KNX telegrams; configurable card-extraction delay for courtesy light
- Functions: guest management by booking and check-in/check-out period, service users by time slots, master key, presence detection via bus
- Protocol: KNX Secure, KNX TP
- Power supply: 30 V DC via KNX bus + auxiliary supply 12–24 V AC or 12–32 V DC
- Mounting: flush-mounting on a round or square box (fixing holes 60 mm apart); fits Form, Flank, 'NF, Deep and Surface plates with 60 × 60 mm window
- In the box: KNX terminal, plastic mounting bracket, two pairs of screws
- Protection: IP20 (installed)
- Dimensions: 80 × 80 × 35 mm, approx. 50 g with bracket
- Colours: black (EK-TO2-TP-B), white (EK-TO2-TP-W)
- Manufacturer reference: EK-TO2-TP-B / EK-TO2-TP-W
Sold separately, required for installation: a plate with a 60 × 60 mm window and the matching adapter, as for 71 series devices – 'NF plate EK-PQS + adapter EK-TAQE-1-NF, Deep plate EK-DQS + EK-TAQE-1-NF, Surface plate EK-SQS + adapter EK-TAS-Q, or for the Form look EK-PQS + EK-TAQE-1 + Form frame EK-FOQ (ERA look: ERA plate EK-DEA-C + bracket EK-SME-1), and a 12–32 V DC auxiliary power supply (EK-PSUD24).
Compatible with: MIFARE 1K cards EK-TCW-10 and card holder EK-TI2-TP.
