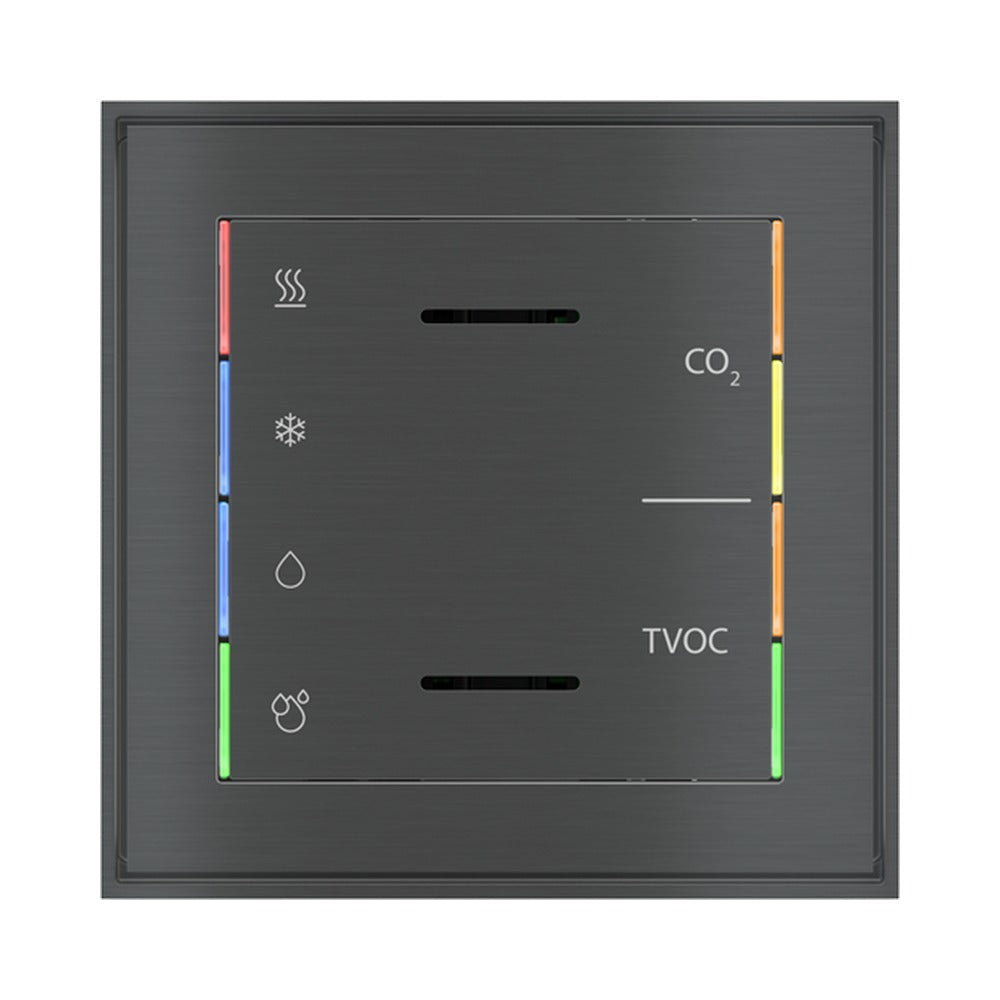

Ekinex 71 series KNX air quality multisensor T/RH/CO2eq/VOC with regulator EK-ES3-TP – assembled device

Ekinex 71 series KNX air quality multisensor T/RH/CO2eq/VOC with regulator EK-ES3-TP

€355,80€430,52
excl. VATincl. VAT
Skip to product information
Ekinex 71 series KNX air quality multisensor T/RH/CO2eq/VOC with regulator EK-ES3-TP – assembled device

Ekinex 71 series KNX air quality multisensor T/RH/CO2eq/VOC with regulator EK-ES3-TP

€355,80€430,52
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy
Needed for installation (13)

Frames, rockers and adapters are sold separately — choose the finish and add to cart.

  • Ekinex front cover 60x60 for multisensor EK-ES3-TP EK-T1Q-ES2
    €77,40€93,65
  • €7,00€8,47
  • €10,10€12,22
  • Ekinex square adapter for FF/71/Deep square plates EK-TAQE-1 / EK-TAQ-1
    €5,30€6,41
  • Ekinex square adapter for Surface plates EK-TAS-Q
    €15,90€19,24
  • Ekinex 'NF/Form square plate 80x80, 60x60 window EK-PQS
    €14,20€17,18
  • Ekinex Deep square plate 87x87, 60x60 window EK-DQS
    €18,70€22,63
  • Ekinex Surface square plate 98x98, 60x60 window EK-SQS
    €65,40€79,13
  • Ekinex 'NF/Form 2-fold plate 151x80, 60x60 + 60x60 EK-P2S
    €18,30€22,14
  • Ekinex Deep 2-fold plate 158x87, 60x60 + 60x60 EK-D2S
    €21,90€26,50
  • Ekinex Surface 2-fold plate 168x98, 60x60 + 60x60 EK-S2S
    €94,00€113,74
  • Ekinex Deep 3-fold plate 229x87, 60x60 + 55x55 + 55x55 EK-D3G
    €198,20€239,82
  • Ekinex FF / 71 series square frame Form 86x86 EK-FOQ
    €22,30€26,98

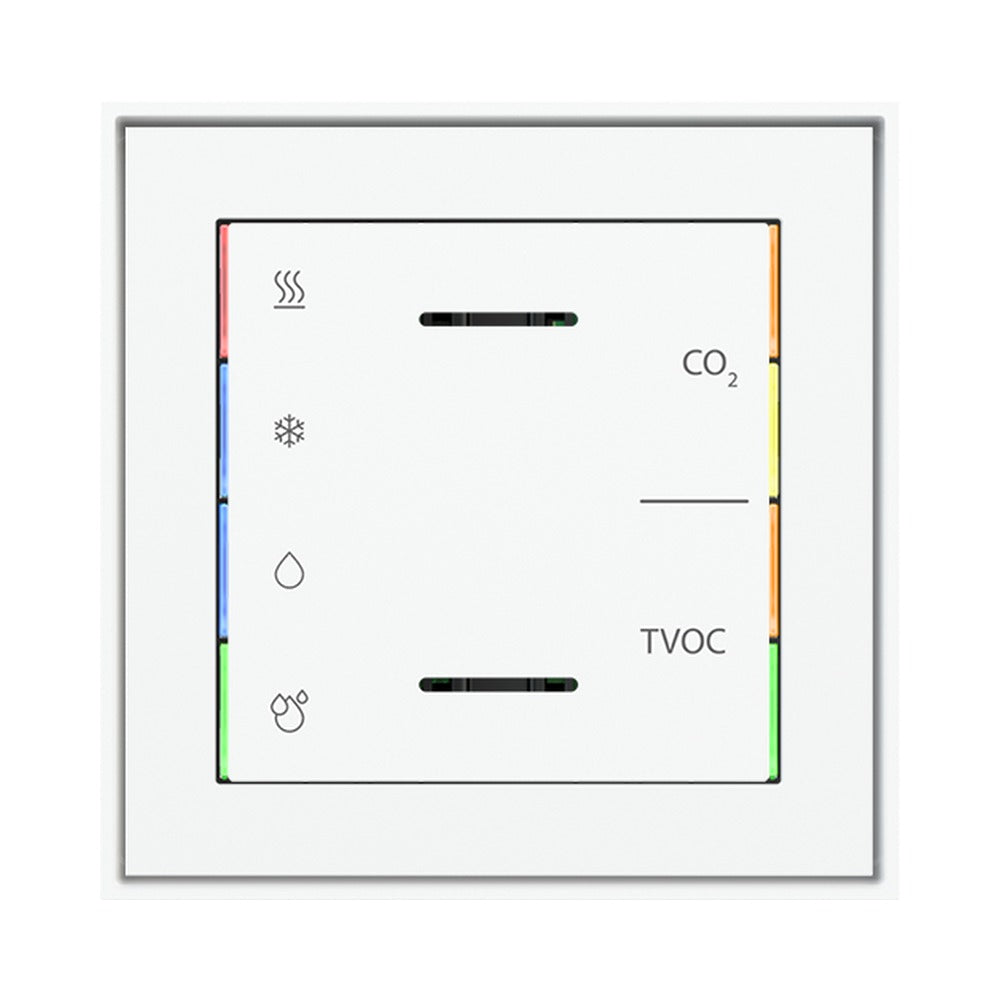

KNX air quality multisensor with regulator of the Ekinex 71 series: measures temperature, relative humidity and air quality (TVOC or CO2 equivalent) and works as a single-zone controller for all three. Front LEDs show heating, cooling, dehumidification, humidification and threshold status. Bus-powered.

  • Sensors: temperature, relative humidity, VOC (TVOC and CO2 equivalent output)
  • Functions: room thermostat, threshold regulator for RH, TVOC and CO2, CO2 alarm (useful for 1 LEED point), Belimo VAV / 6-way valve compatibility
  • Power supply: KNX bus 30 V DC, no auxiliary supply, < 13 mA
  • Mounting: round or square wall box (fixing holes 60 mm apart) with support EK-SMQ-71-1; Form, 'NF, Deep and Surface plates
  • Protection / weight: IP20 (installed), 90 g with support
  • In the box: device, KNX terminal and fixing screws only
  • Configuration: ETS5 2.0 or later
  • Manufacturer reference: EK-ES3-TP

Sold separately, required for installation: the front cover EK-T1Q-…-ES2 and a metal support EK-SMQ-71-1 (rectangular box: EK-SMR-71-1), a plastic adapter (EK-TAQE-1-NF for 'NF/Deep plates, EK-TAQE-1 with a Form frame, EK-TAS-Q for Surface), a plate with a 60 × 60 mm window ('NF EK-PQS, Deep EK-DQS, Surface EK-SQS; 2-fold/3-fold: EK-P2S/D2S/S2S, EK-D3G); for the Form look a Form frame EK-FOQ.
