Ekinex 71 series KNX 4-channel pushbutton with thermostat EK-E13-TP
Registered customers save 5%. Log in or create an account
Needed for installation (16)
Frames, rockers and adapters are sold separately — choose the finish and add to cart.
-
€7,00€8,47
-
€10,10€12,22
-
€5,30€6,41
-
€15,90€19,24
-
€14,20€17,18
-
€18,70€22,63
-
€65,40€79,13
-
€18,30€22,14
-
€21,90€26,50
-
€94,00€113,74
-
€198,20€239,82
-
€73,90€89,42
-
€105,70€127,90
-
€150,20€181,74
-
€150,20€181,74
-
€22,30€26,98
KNX 4-fold pushbutton of the Ekinex 71 series with integrated temperature sensor: switching, dimming, shutters or any programmable KNX function, and room or zone thermostat. Fits 60 × 60 mm plate windows of Form, 'NF, Deep and Surface plates. Bus-powered.

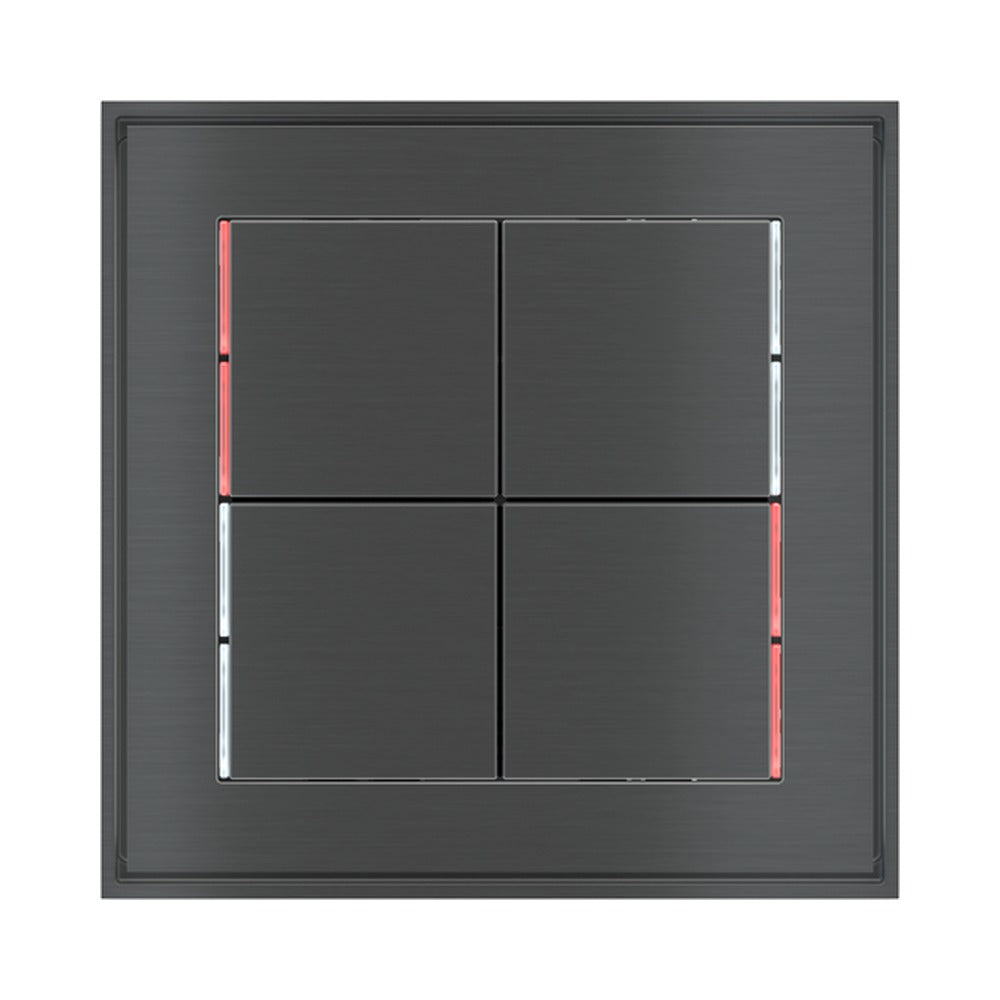

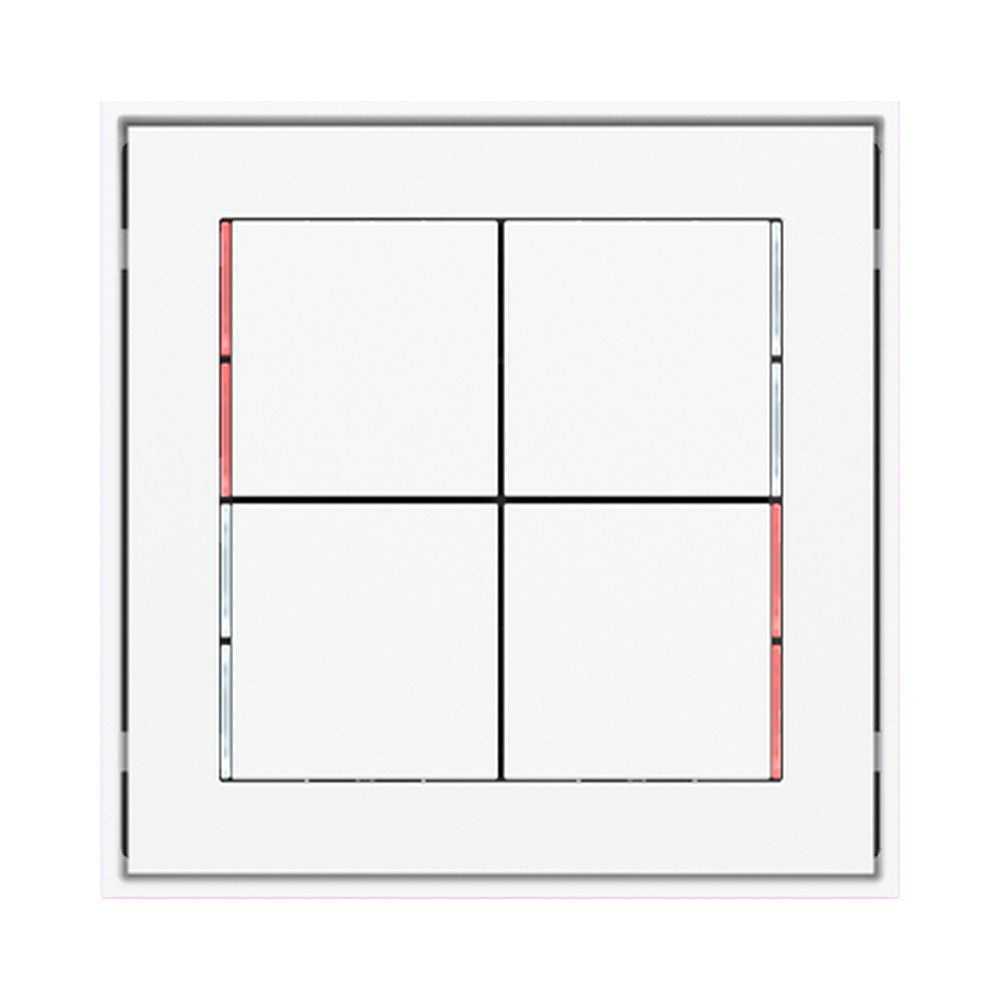

Rockers, plate, frame, metal support and adapters are not included. The photos show the device fitted with rockers, Form frame and plate, which are ordered separately – see «Needed for installation» above.
- Channels: 4 channels, up to 8 independent functions
- LEDs: 4 freely programmable LEDs per channel, blue/green or red/white
- Sensors: integrated temperature sensor, room thermostat function
- Power supply: KNX bus 30 V DC, no auxiliary supply, < 15 mA
- Mounting: round or square wall box (fixing holes 60 mm apart) with support EK-SMQ-71-1; Form, 'NF, Deep and Surface plates
- Dimensions: 81 × 77 × 21 mm (W × H × D)
- Protection / weight: IP20 (installed), 70 g with support
- In the box: device, KNX terminal and fixing screws only
- Configuration: ETS5 or later
- Manufacturer reference: EK-E13-TP-BG / EK-E13-TP-RW
Sold separately, required for installation: a metal support EK-SMQ-71-1 (rectangular box: EK-SMR-71-1), a plastic adapter (EK-TAQE-1-NF for 'NF/Deep plates, EK-TAQE-1 with a Form frame, EK-TAS-Q for Surface), a plate with a 60 × 60 mm window ('NF EK-PQS, Deep EK-DQS, Surface EK-SQS; 2-fold/3-fold: EK-P2S/D2S/S2S, EK-D3G), one rocker kit (EK-T1Q, EK-T2R, EK-T4Q or EK-T4R) and, for the Form look, a Form frame EK-FOQ.
