Ekinex 20venti KNX 5-rocker pushbutton with backlit symbols and proximity sensor EK-E2E-TP-5L/R
€199,90€241,88
excl. VATincl. VAT
Registered customers save 5%. Log in or create an account
Delivery in 5–14 business days
Shipping policy
Needed for installation (7)
Frames, rockers and adapters are sold separately — choose the finish and add to cart.
-
€7,00€8,47
-
€5,30€6,41
-
€15,90€19,24
-
€18,70€22,63
-
€65,40€79,13
-
€23,00€27,83
-
€6,60€7,99

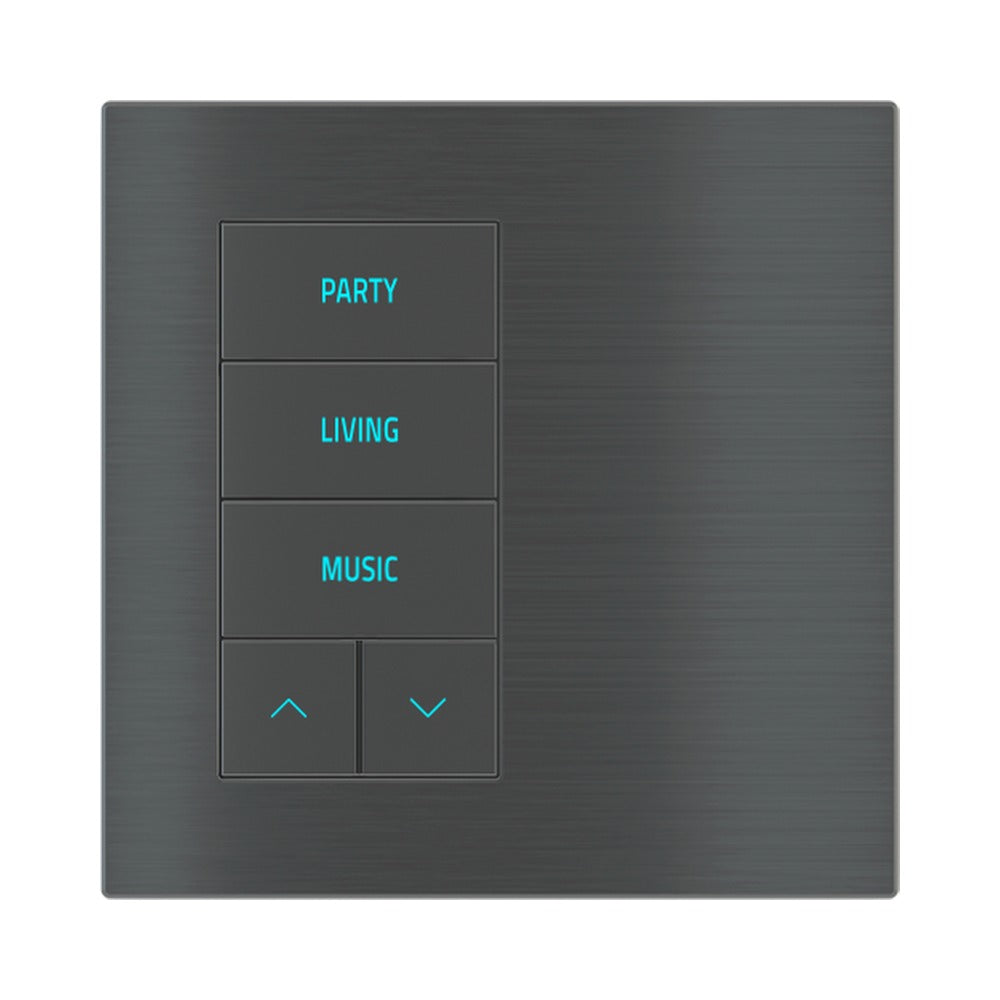

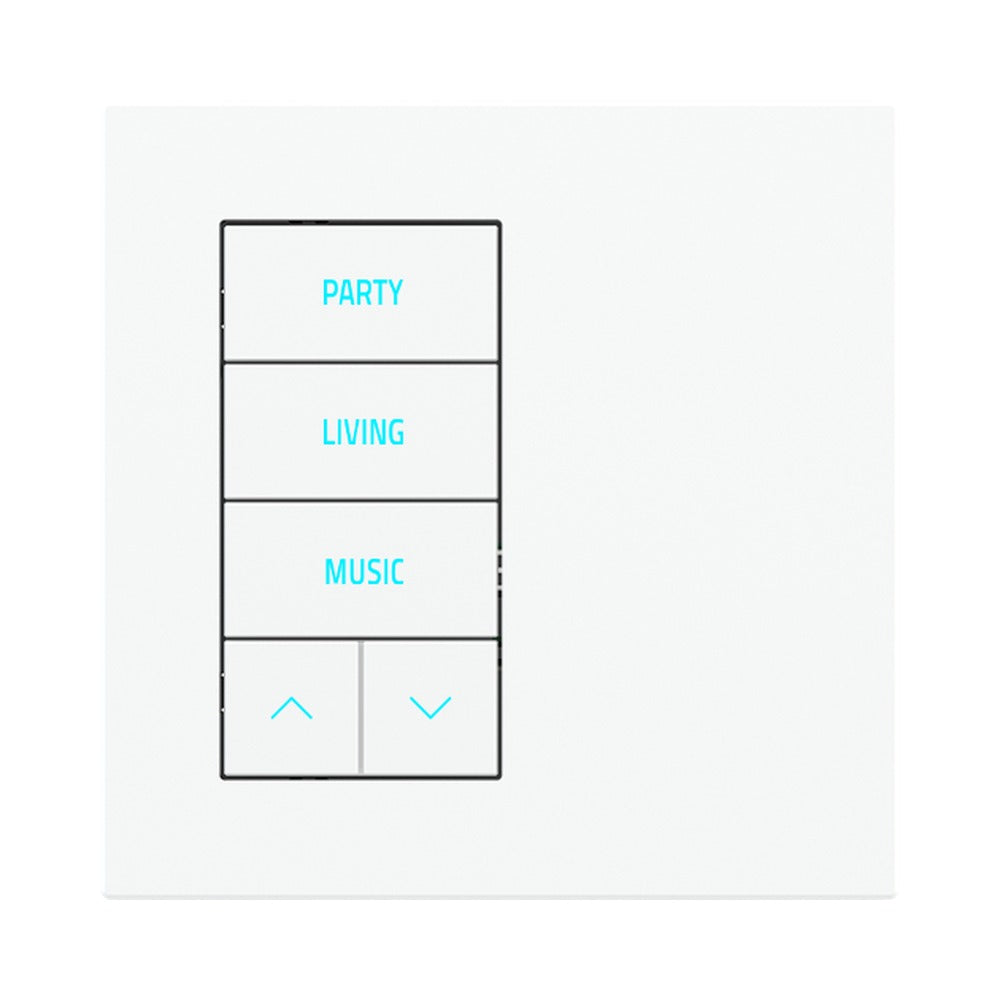

KNX 5-rocker pushbutton of the Ekinex 20venti series with RGB-backlit text/symbols and proximity sensor: 3 function rockers plus one adjustment rocker for dimming or shutters; room thermostat via the integrated temperature sensor. Left or right mounting version.
- Rockers: 3 rockers 30 × 15 mm + 1 adjustment rocker, up to 5 functions (2 for adjustments)
- LEDs: RGB LED for each freely programmable rocker
- Sensors: integrated temperature sensor (room thermostat function) and proximity sensor
- Power supply: KNX bus 30 V DC, no auxiliary supply, < 17 mA
- Mounting: round or square wall box (fixing holes 60 mm apart); Deep and Surface plates only; left (5L) or right (5R) version
- Dimensions: 80 × 80 × 20 mm on square support, 122 × 80 × 35 mm on rectangular support
- Protection: IP20 (installed)
- In the box: device, KNX terminal and fixing screws only
- Configuration: ETS5 or later
- Manufacturer reference: EK-E2E-TP-5L / EK-E2E-TP-5R
Sold separately, required for installation: a metal support EK-SMQ-71-1, an adapter (EK-TAQE-1-NF Deep / EK-TAS-Q Surface), a Deep or Surface plate with 30 × 60 mm window (EK-DQT / EK-SQT) and 3 text rockers (1 × EK-T4R-20, pack of 4, one spare) plus 1 × adjustment rocker EK-T2B-20.
