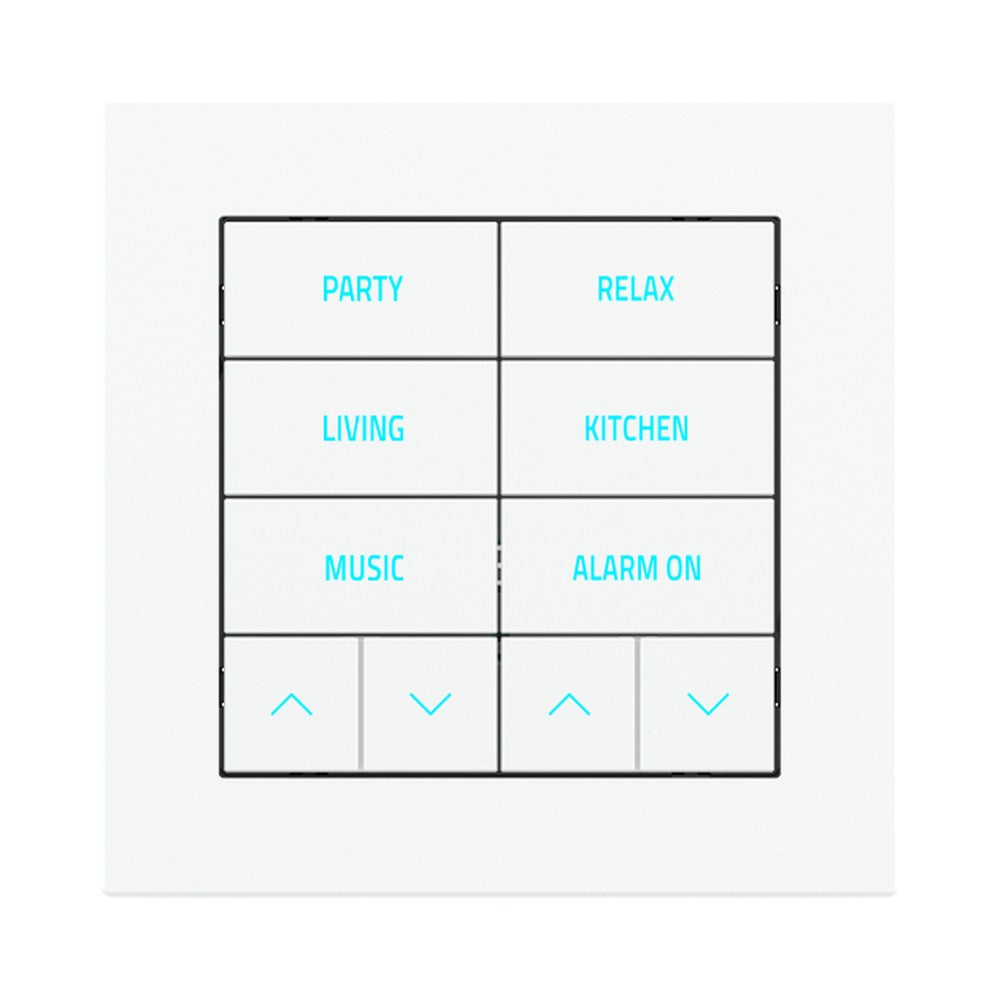

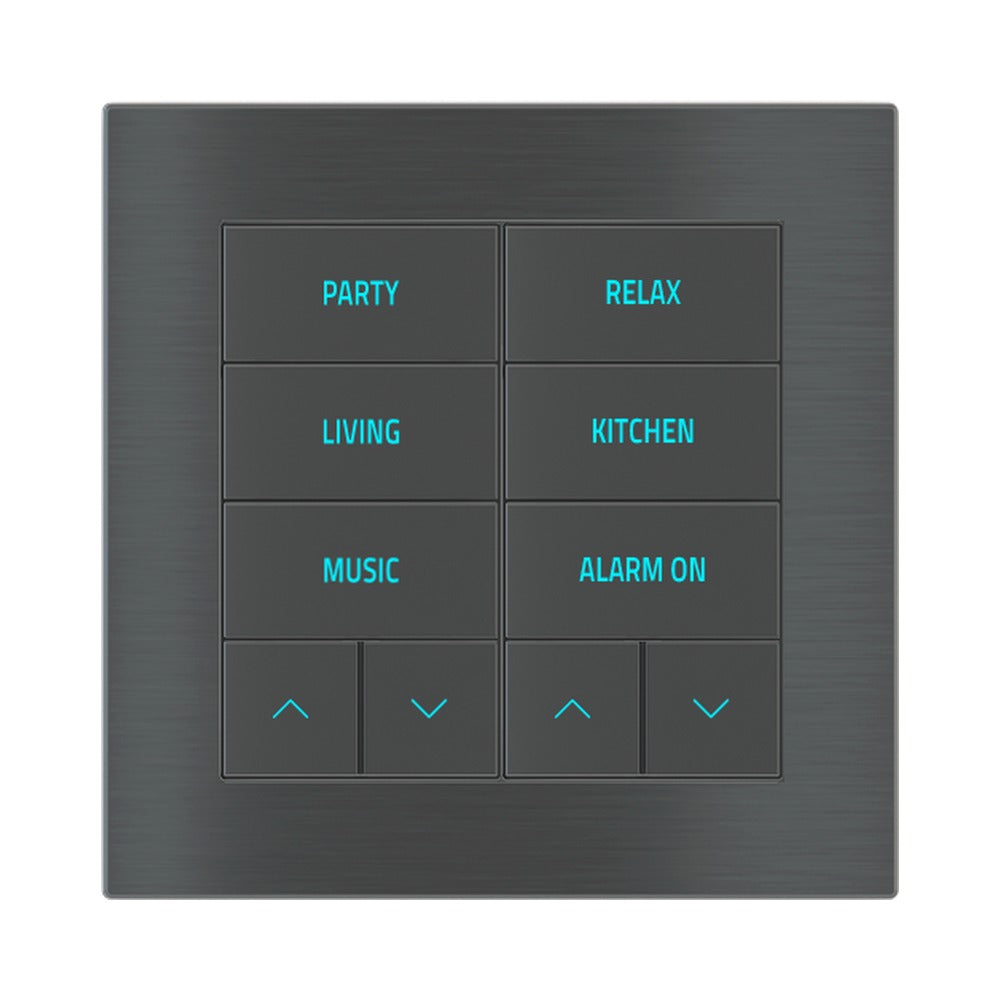

Ekinex 20venti KNX 10-rocker pushbutton with backlit symbols and proximity sensor EK-E2E-TP-10
€303,11
KNX 10-rocker pushbutton of the Ekinex 20venti series with RGB-backlit text/symbols and proximity sensor: 6 function rockers plus 2 adjustment rockers; room thermostat via the integrated temperature sensor. Fits 60 × 60 mm windows of Deep and Surface plates.
- Rockers: 6 rockers 30 × 15 mm + 2 adjustment rockers, up to 10 functions plus 4 paired keys for adjustments
- LEDs: RGB LED for each freely programmable rocker
- Sensors: integrated temperature sensor (room thermostat function) and proximity sensor
- Power supply: KNX bus 30 V DC, no auxiliary supply, < 17 mA
- Mounting: round or square wall box (fixing holes 60 mm apart); Deep and Surface plates only
- Dimensions: 80 × 80 × 20 mm on square support, 122 × 80 × 35 mm on rectangular support
- Protection: IP20 (installed)
- In the box: device, KNX terminal and fixing screws only
- Configuration: ETS5 or later
- Manufacturer reference: EK-E2E-TP-10
Sold separately, required for installation: a metal support EK-SMQ-71-1, an adapter (EK-TAQE-1-NF Deep / EK-TAS-Q Surface), a Deep or Surface plate with 60 × 60 mm window (EK-DQS / EK-SQS; rectangular box EK-DRS; 2/3-fold EK-D2S, EK-D3G, EK-S2S) and 6 text rockers (2 × EK-T4R-20, pack of 4, 2 spare) plus 2 × adjustment rocker EK-T2B-20.
