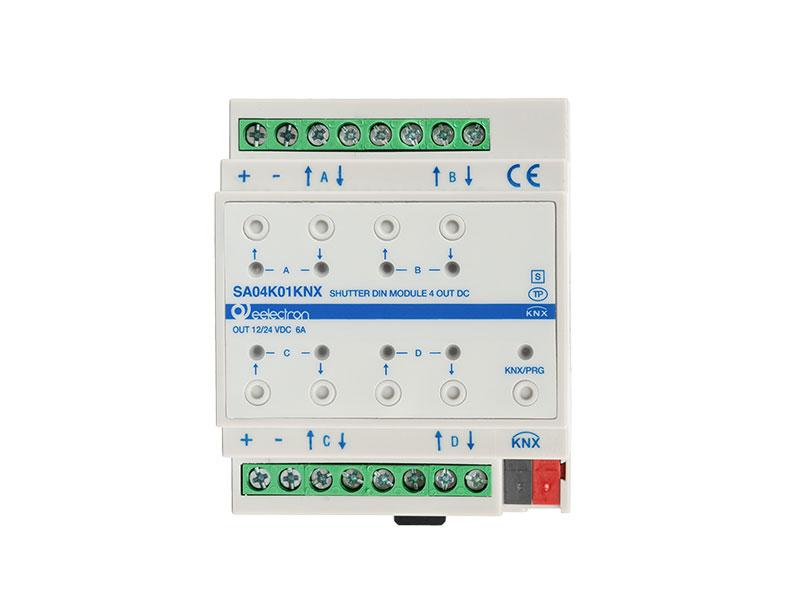

Shutters Module 4 Out 12-24 V Dc – Eelectron

Eelectron KNX shutter actuator, 4 × 12–24 V DC motor channels

€343,80€416,00
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

Eelectron KNX DIN-rail actuator with 4 channels for venetian blinds, roller shutters and other shading devices driven by 24 V DC motors. Travel and slat times can be parameterised for precise positioning, and channels can be integrated into the internal façade-control module.

  • Channels: 4 outputs for DC shutter motors, separate supply inputs
  • Motor voltage: 24 V DC, 6 A per channel
  • Functions: position and slat control, presets, scenes, timers, alarms, façade control
  • Manual control: local buttons with movement status LEDs
  • Supply: via KNX bus, 21–30 V DC, 9.4 mA
  • Mounting: 35 mm DIN rail, 4 modules (70 × 58 × 90 mm)
  • Operating temperature: −5 to +45 °C, IP20
  • Manufacturer reference: SA04K01KNX
