Eelectron KNX power supply 1280 mA
€354,60€429,07
excl. VATincl. VAT
Registered customers save 5%. Log in or create an account
Delivery in 5–14 business days
Shipping policy

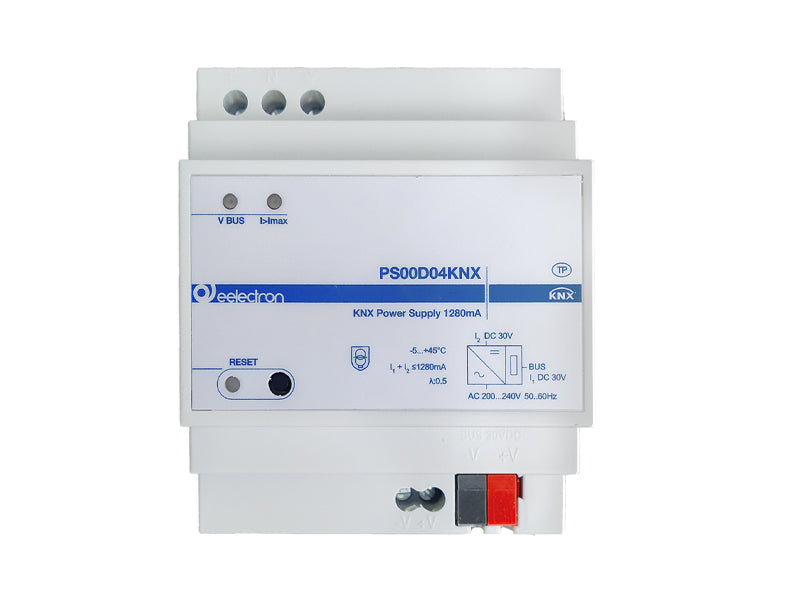

Eelectron KNX bus power supply with 1280 mA output for large KNX lines. Voltage- and current-regulated and short-circuit protected, with an integrated choke, a front bus-reset button and an additional 30 V DC auxiliary output.
- Input: 180–264 V AC, 50/60 Hz
- Output: 30 V DC SELV, 1280 mA
- Auxiliary output: 30 V DC (not for powering the bus)
- Backup: approx. 200 ms at rated current
- Line rules: max. 2 supplies per line; max. 350 m to bus devices
- Operating temperature: −30 to +70 °C, IP20
- Mounting: DIN rail, 4 modules, approx. 295 g
- Manufacturer reference: PS00D04KNX
