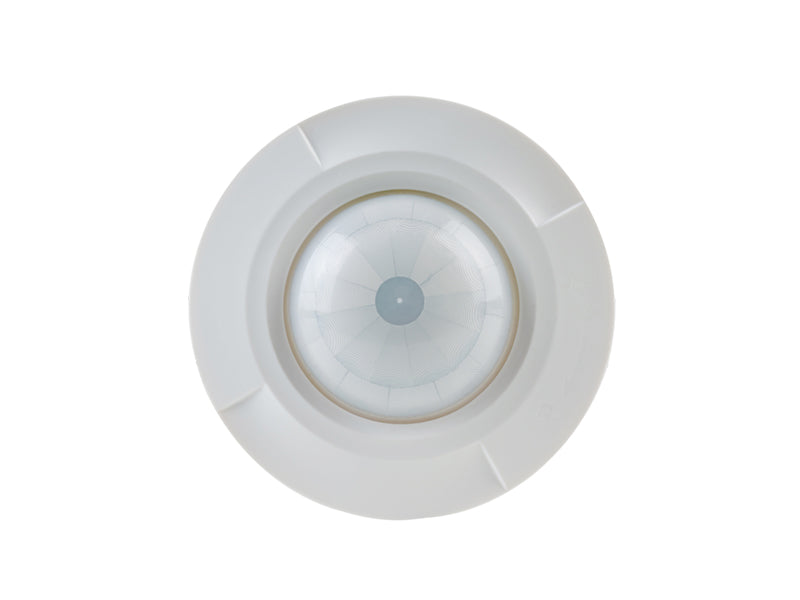

Eelectron Conventional Presence + Light Sensor, 2 Channels, 230 Vac, Ø24 m
€78,30€94,74
excl. VATincl. VAT
Registered customers save 5%. Log in or create an account
Delivery in 5–14 business days
Shipping policy
Eelectron conventional (non-bus) PIR presence and brightness sensor with two channels: channel 1 switches 230 V lighting loads according to motion and ambient light, channel 2 is an independent dry contact for HVAC or for interfacing KNX and other automation systems.
- Supply: 220–240 V ±10 %, 50/60 Hz
- Detection range: approx. Ø 24 m / 360° at 2.5 m height
- Load 1 (lighting): incandescent 2000 W, HV halogen 1000 W, LV halogen 1000 VA, fluorescent 750 VA, LED/energy-saving 600 VA
- Load 2 (dry contact): max. 5 A at 12–250 V AC or 5–30 V DC
- Lux setting: 10–2000 lux, daylight and teach-in
- Time settings: Load 1: pulse–30 min; Load 2: 10 s–60 min
- Protection: IP20, −20 to +45 °C
- Manufacturer reference: PD02X02CON
