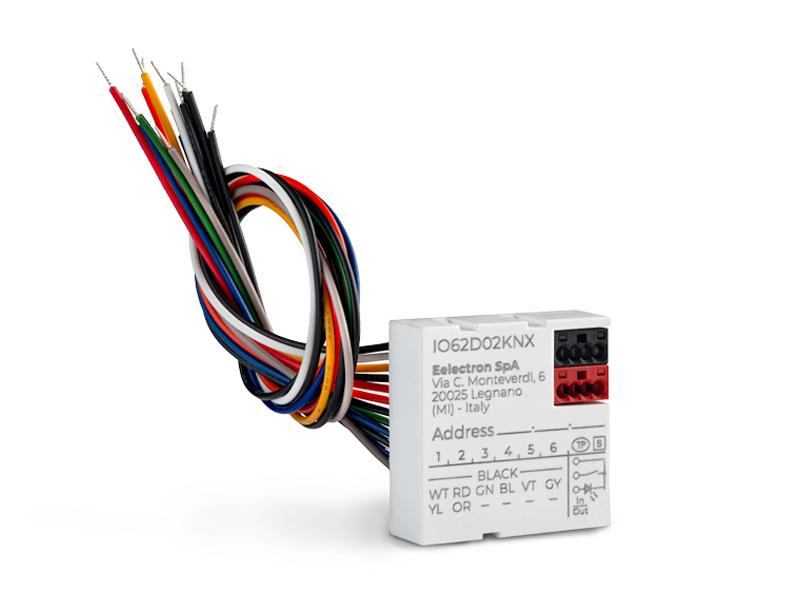

Push Button Interface 6 In - 2 Out Led – Eelectron

Eelectron KNX in-wall pushbutton interface, 6 IN / 2 LED OUT

€105,30€127,41
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

Compact Eelectron KNX in-wall interface with 6 digital inputs for conventional pushbuttons, switches or sensors and 2 low-voltage outputs to drive indication LEDs. It installs in a flush-mounted wall box behind conventional controls.

  • Inputs: 6 for dry contacts, cable up to 10 m
  • LED outputs: 2, 0.5 mA / 3.3 V
  • Input functions: switching, dimming, shutters/blinds, scenes, sequences, pulse counter, RGB and MUR/DND commands
  • Logic: 16 logic blocks, Virtual Holder Logic
  • Supply: via KNX bus, 21–31 V DC, ≤ 5 mA
  • Mounting: flush-mounted box, 34 × 34 × 11 mm; 12-way wired connector
  • Manufacturer reference: IO62D02KNX
