Universal Module 16 In / 16 Out Plus – Eelectron

Eelectron KNX Universal 16 IN / 16 OUT PLUS DIN module

Without microSD
€574,20€694,78
excl. VATincl. VAT
Skip to product information
Universal Module 16 In / 16 Out Plus – Eelectron

Eelectron KNX Universal 16 IN / 16 OUT PLUS DIN module

€574,20€694,78
excl. VATincl. VAT
microSD reader
Delivery in 5–14 business days Shipping policy

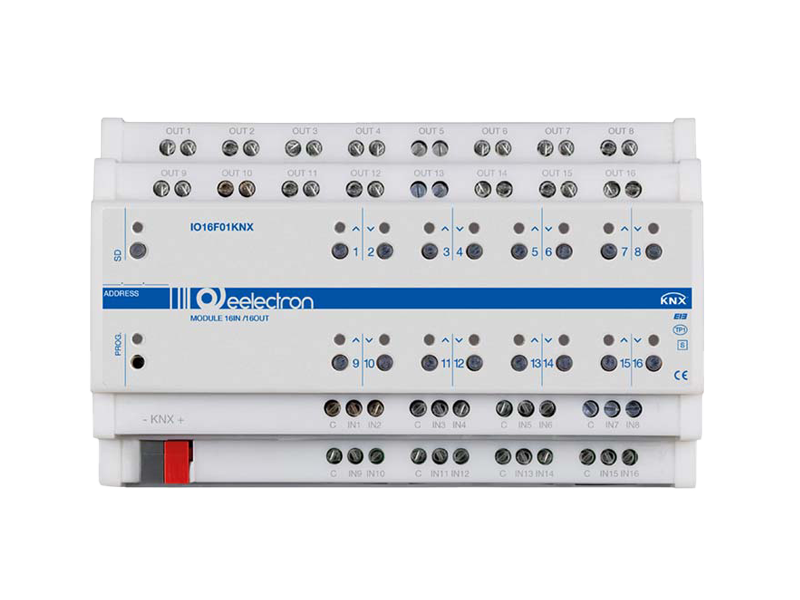

Eelectron F-Series universal KNX DIN-rail actuator with 16 potential-free inputs and 16 high-current relay outputs.

  • Inputs: 16 for potential-free contacts
  • Outputs: 16 relay outputs, 16 A / 230 Vac
  • Lighting / loads: up to 16 channels
  • Shutters / blinds: up to 8 channels
  • Fan coils: up to 4 × 2-pipe
  • Analogue inputs: 4 inputs configurable for compatible NTC probes
  • Local control: front buttons and status LEDs
  • microSD version: also available with a built-in microSD card reader to save the programming and restore it to an identical device — select “With microSD” above
  • Manufacturer reference: IO16F01KNX / IO16F01KNX-SD (with microSD)
