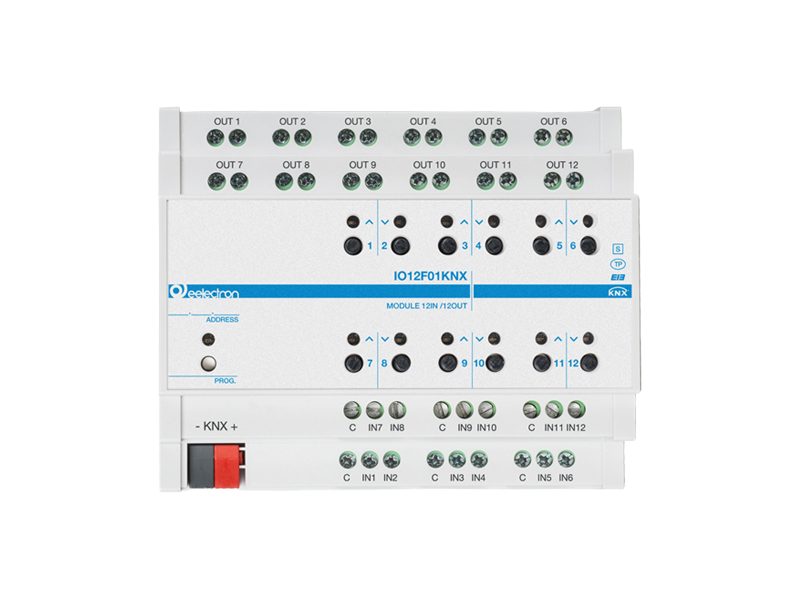

Eelectron KNX Universal 12 IN / 12 OUT PLUS DIN module
€486,90€589,15
excl. VATincl. VAT
Registered customers save 5%. Log in or create an account
Delivery in 5–14 business days
Shipping policy
Eelectron F-Series universal KNX DIN-rail actuator with 12 potential-free inputs and 12 high-current relay outputs.
- Inputs: 12 for potential-free contacts
- Outputs: 12 relay outputs, 16 A / 230 Vac
- Lighting / loads: up to 12 channels
- Shutters / blinds: up to 6 channels
- Fan coils: up to 3 × 2-pipe or 2 × 4-pipe
- Analogue inputs: up to 4 compatible NTC probes
- Thermostats: up to 3 integrated thermostat modules
- microSD version: also available with a built-in microSD card reader to save the programming and restore it to an identical device — select “With microSD” above
- Manufacturer reference: IO12F01KNX / IO12F01KNX-SD (with microSD)
