Router Ip-KNX Interface – Eelectron

Eelectron KNX IP Secure Router

€497,70€602,22
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

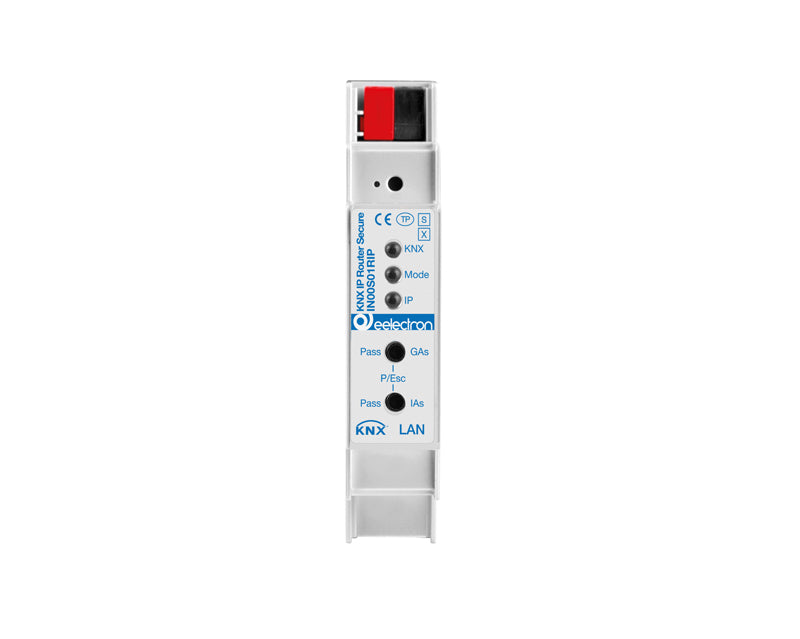

Eelectron KNX IP Secure router that couples KNX TP lines over a fast Ethernet/IP backbone and also serves as an ETS programming interface via tunnelling. As a secure router it can connect non-secure TP communication to a secure IP backbone.

  • Modes: KNXnet/IP Routing and Tunnelling (V2)
  • Tunnelling: up to 8 simultaneous connections
  • Security: KNX Security (AES-128)
  • Filter / buffer: extended filter table, main groups 0–31; 150 telegrams
  • Ethernet: 10BaseT, DHCP / Auto IP or manual
  • Supply: via KNX bus, approx. 20 mA
  • Mounting: DIN rail, 1 module (18 mm), approx. 40 g
  • Manufacturer reference: IN00S01RIP
