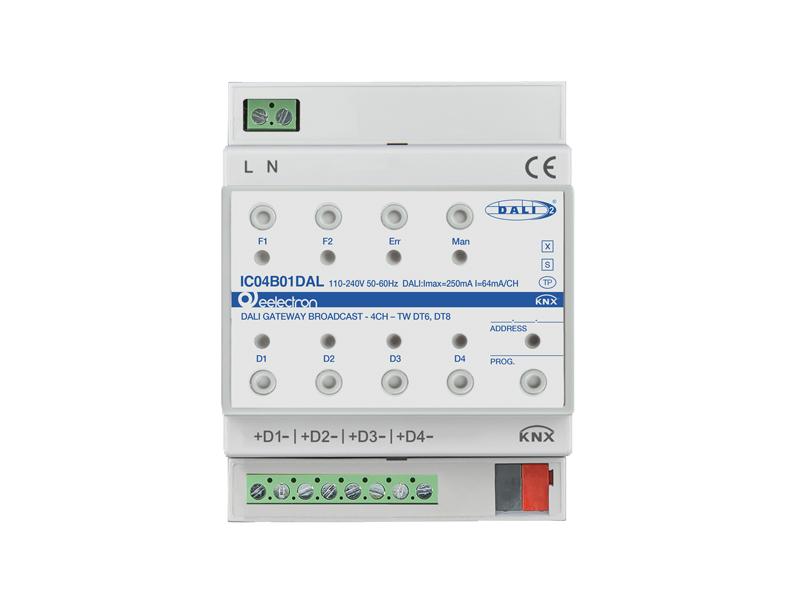

Eelectron KNX / DALI broadcast gateway, 4 channels, DT6 / DT8
€283,50€343,04
excl. VATincl. VAT
Registered customers save 5%. Log in or create an account
Delivery in 5–14 business days
Shipping policy
Eelectron four-channel KNX/DALI broadcast gateway: all control gear on each DALI output is controlled simultaneously with broadcast telegrams, ideal for simple zone control without addressing. Supports DALI-1 and DALI-2 gear, including Dynamic/Tunable White (DT6, DT8).
- DALI outputs: 4, single-master broadcast
- Control gear: max. 32 ECGs per channel, 128 in total
- DALI supply: guaranteed 64 mA per channel, max. 250 mA
- Manual mode: 8 buttons for manual operation and service functions
- Security: KNX Data Secure
- Mains supply: 100–240 V AC/DC, 50–60 Hz, max. 8 W
- Mounting: 35 mm DIN rail, 4 modules (72 × 58 × 90 mm), 140 g
- Manufacturer reference: IC04B01DAL
