Eelectron KNX / DALI gateway, 2 channels, DT6 / DT8

€616,50€745,97
excl. VATincl. VAT
Skip to product information
KNX DALI Gateway - 2 Channels - Tunable White Dt6, Dt8 – Eelectron

Eelectron KNX / DALI gateway, 2 channels, DT6 / DT8

€616,50€745,97
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

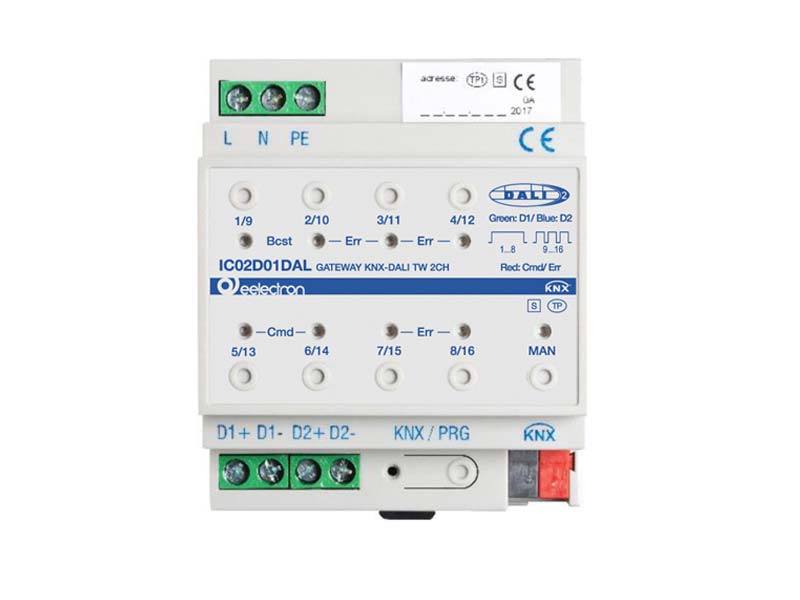

Eelectron two-channel KNX/DALI gateway with two independent DALI lines, converting KNX switching and dimming commands into DALI telegrams and DALI status back into KNX. Supports Dynamic/Tunable White (DT6, DT8).

  • DALI outputs: 2 independent, single-master per EN 62386-103 ed2
  • Control gear: max. 64 ECGs per channel, up to 16 groups per channel
  • DALI supply: guaranteed 128 mA, max. 250 mA per line
  • Mains supply: 110–240 V AC/DC, 50–60 Hz, max. 16 W
  • Mounting: DIN rail, 4 modules, approx. 130 g
  • Operating temperature: −5 to +45 °C, IP20
  • Manufacturer reference: IC02D01DAL
