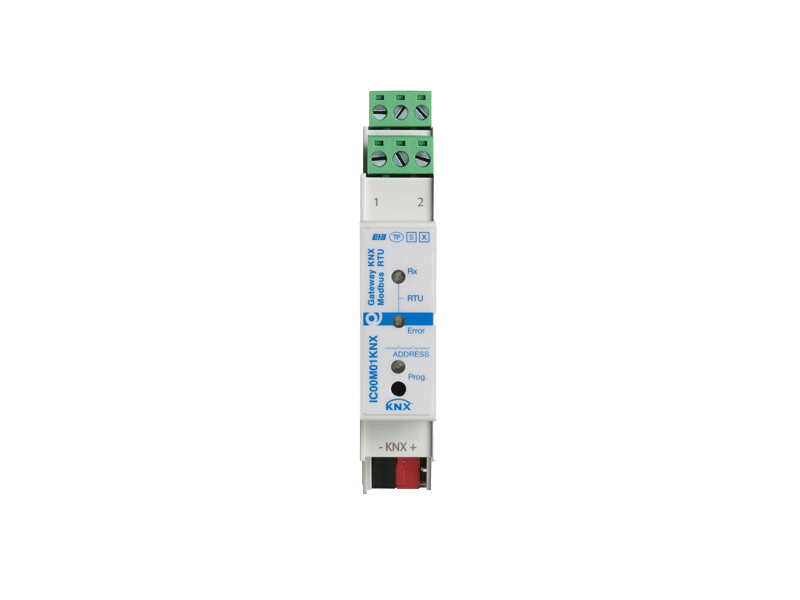

KNX-Modbus Gateway – Eelectron

Eelectron KNX / Modbus RTU gateway, 250 datapoints

€205,20€248,29
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

Eelectron bidirectional KNX/Modbus RTU gateway for integrating Modbus devices using the RTU protocol over RS485 into KNX installations. It works as Modbus master or slave, with alarm handling and math operations available on every channel.

  • KNX datapoints: 250 freely configurable channels
  • Modbus: RTU over RS485, master or slave
  • Logic: 50 logic blocks, Virtual Holder Logic
  • Security: KNX Data Secure
  • Configuration: ETS application program
  • Supply: via KNX bus, 21–32 V DC, max. 15 mA
  • Mounting: DIN rail, 1 module (18 mm), approx. 40 g
  • Manufacturer reference: IC00M01KNX
