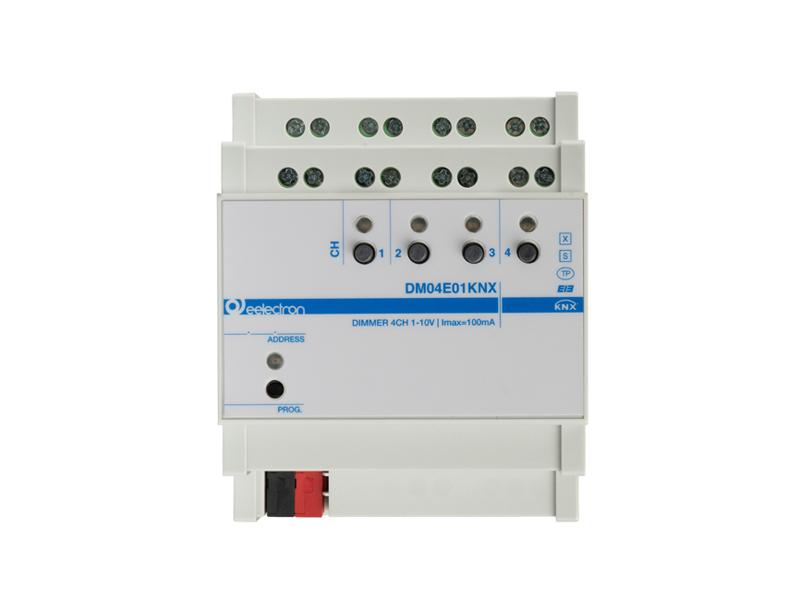

Eelectron KNX 1–10 V dimmer, 4 channels
€305,10€369,17
excl. VATincl. VAT
Registered customers save 5%. Log in or create an account
Delivery in 5–14 business days
Shipping policy
Eelectron 4-channel KNX dimmer for electronic ballasts and LED drivers controlled via 1–10 V, with four 16 A relays to switch the ballast supply. Channels can be used singly or grouped for Tunable White, RGB or RGBW luminaires; no additional power supply is required.
- Analogue outputs: 4 × 1–10 V, max. 100 mA each, cable up to 500 m
- Relay outputs: 4 × 16 A cos φ 1 – 250 V AC, 117 A peak (TV-8)
- Lighting modes: single channel, Tunable White, RGB, RGBW
- Functions: staircase timer, scenes, sequences, custom dimming curve, 16 logic blocks
- Local control: 4 manual buttons with status LEDs
- Supply: via KNX bus, 21–32 V DC, max. 15 mA
- Mounting: DIN rail, 4 modules, approx. 194 g
- Security: KNX Data Secure
- Manufacturer reference: DM04E01KNX
