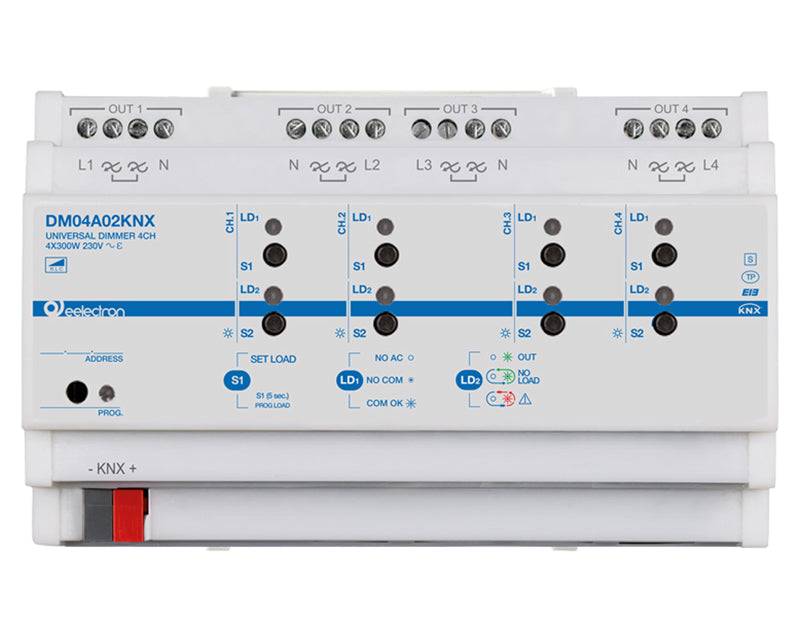

Eelectron KNX universal dimmer, 4 × 300 W
€516,60€625,09
excl. VATincl. VAT
Registered customers save 5%. Log in or create an account
Delivery in 5–14 business days
Shipping policy
Eelectron 4-channel KNX universal dimmer with automatic load identification and adjustable parameters to optimise control of LED, incandescent and halogen lamps, dimmable CFLs and transformer-fed low-voltage lamps. Channels can be used independently or combined in pairs (1+2, 3+4) for higher loads.
- Channels: 4 × 300 W, pairable
- Dimming modes: trailing edge (RC) or leading edge (L)
- Load tool: DimmerLoadTester software to calculate the maximum number of lamps
- Supply: via KNX bus, 21–32 V DC, ≤ 10 mA
- Mounting: DIN rail, vertical position with bus connector at the bottom
- Configuration: ETS
- Manufacturer reference: DM04A02KNX
