Module 8 Out 20A – Eelectron

Eelectron KNX 8 × 20 A universal DIN actuator

€378,90€458,47
excl. VATincl. VAT
Skip to product information
Module 8 Out 20A – Eelectron

Eelectron KNX 8 × 20 A universal DIN actuator

€378,90€458,47
excl. VATincl. VAT
Delivery in 5–14 business days Shipping policy

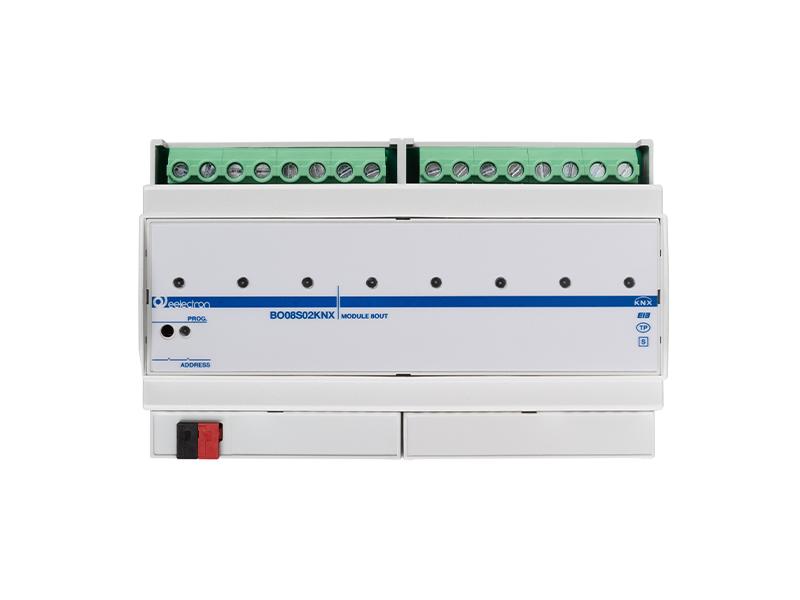

Eelectron KNX DIN-rail actuator with 8 high-current 20 A relay outputs for lighting and generic loads. Each output can work independently, or relays can be grouped with logic interlocking for special functions.

  • Outputs: 8 relays, 20 A AC1 / 230 V AC
  • Load limits: incandescent 16 A, motor 10 A, fluorescent 10 A; peak 500 A / 2 ms
  • Switching life: min. 1 × 10⁶ mechanical operations
  • Logic: 8 logic blocks; relay groups with interlock
  • Terminals: up to 6 mm² solid
  • Supply: via KNX bus, 21–32 V DC, ≤ 12 mA
  • Mounting: DIN rail, 8 modules
  • Manufacturer reference: BO08S02KNX
