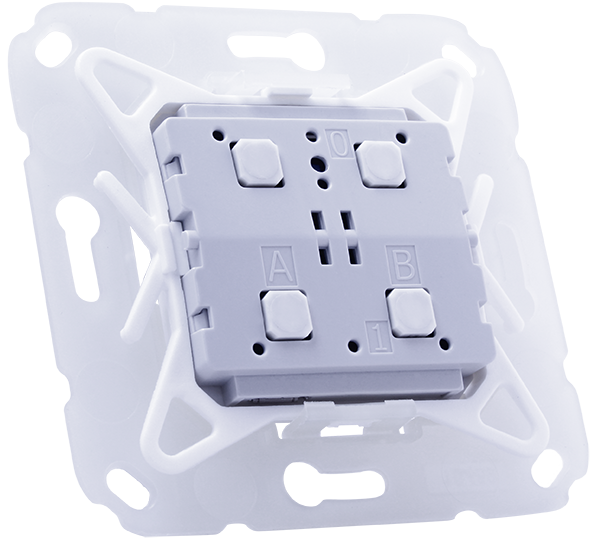

KNX RF / ENO Push Button 440 secure

KNX wireless push button of the MATCH 55 series, with integrated bus coupling unit. The wireless push button offers support for EnOcean and KNX RF in one device. The device works in EnOcean mode without configuration (EnOcean Security is activated by a simple push button combination). By configuration with ETS® the push button switches to KNX RF mode and offers optional support of KNX Security.

• Pleasantly soft and quiet pressure point
• EnOcean 868.3 MHz, ASK, EEP F6-02-01 / -03
• Support of EnOcean Security
• KNX RF 868.3 MHz, FSK, S-Mode
• Support of KNX Security
• Powerful KNX application for switching, dimming and shutters
• Functions for scenes, sequences and RGB control
• Integrated interface USB to KNX RF
• Mounting kit included (without rockers and without design frame)
• Connectors: USB Type Micro B, internal antenna
• Power supply via battery type CR2032
• Dimensions wall mounting plate: 71 x 71 mm, for flush mounted box 68 mm
• Recommended for KNX EnOcean gateways, on page 12 and KNX RF on page 21

Manufacturer article number: 5530
