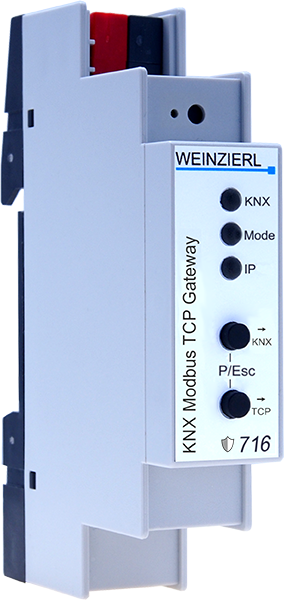

KNX Modbus TCP Gateway 716 secure

Compact KNX / Modbus gateway with 250 freely configurable channels (KNX data points). The device allows easy integration of Modbus devices supporting the TCP protocol over IP into KNX installations. It can be used as Modbus master or slave. The assignment between KNX objects and Modbus registers is done via parameters in the ETS® - no further tool is required. Furthermore, the device can be used as a programming interface to connect one or more PCs to the KNX bus (e.g. for ETS®). Power is supplied via the KNX bus. The device supports KNX Security.

• KNXnet/IP tunneling, 8 tunnel connections
• Support of KNX Long Frames
• Modbus master or slave mode
• Assignment between KNX and Modbus via ETS® parameter
• As master: up to 5 slave devices
• 250 data points
• Support of KNX Security
• Status display via 3 LEDs
• Power supply via KNX bus
• Connections: KNX, LAN RJ-45
• For DIN rail, width 1 TE (18 mm)

Manufacturer article number: 5425
