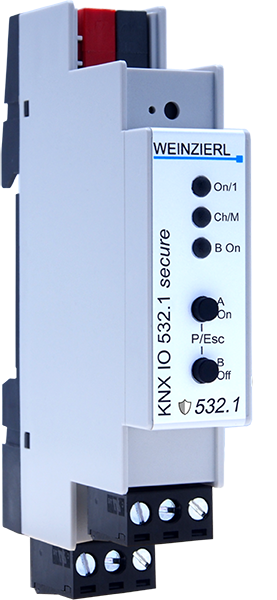

KNX IO 532.1 secure

Compact dimming actuator with one PWM output for dimming LEDs and one relay output. The dimming actuator can be used e.g. for LED panels/strips. The relay output can be used to switch the LED power supply.

• Output for 12..24 V? / 6A, PWM dimming actuator
• Scenes, sequencer, staircase function, adjustable dimming curve
• Relay 250 V? / 10 A, bistable
• Integrated logic and timer functions
• Direct operation with the ETS without download
• Support of KNX Security
• Connections: KNX, plugable screw terminals

Manufacturer article number: 5503
